The biggest differences come down to steel size, steel thickness, capacity, and how much configurability you want. The Altitude™ Series is built with 2”x2” (50mm x 50mm) uprights (with a 2”x3” base) using 14-gauge steel, and it’s rated to a max rack capacity of 700 lb (318 kg). It’s designed for lifters who want a premium, all-in-one training system without the overwhelming number of configuration decisions that come with the 4000 and 5000 Series—clean, cohesive, and easy to navigate. You still get a refined, customizable ecosystem with upgrades like the Altitude™ Smith Machine attachment, cable attachment, and storage options, so it’s easy to build now and easy to level up later.

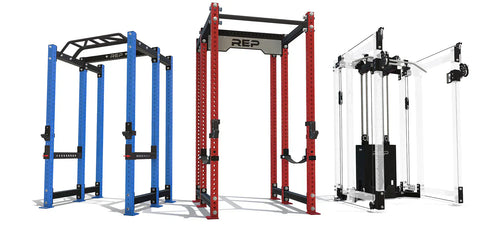

By comparison, the 4000 and 5000 Series are built with 3”x3” (75mm x 75mm) uprights using 11-gauge steel, with a max rack capacity of 1,000 lb (454 kg). These racks are for lifters who want more rigidity and higher capacity, plus more modular freedom. The 5000 Series in particular is the top end: maximum rigidity, maximum load capacity, and maximum configurability, with near-endless options across crossmembers, rack depths, and specialty attachments—commercial-grade power built to scale with whatever your training demands next.

No, you don’t need to bolt the Altitude™ power rack down but it is always recommended for safety.

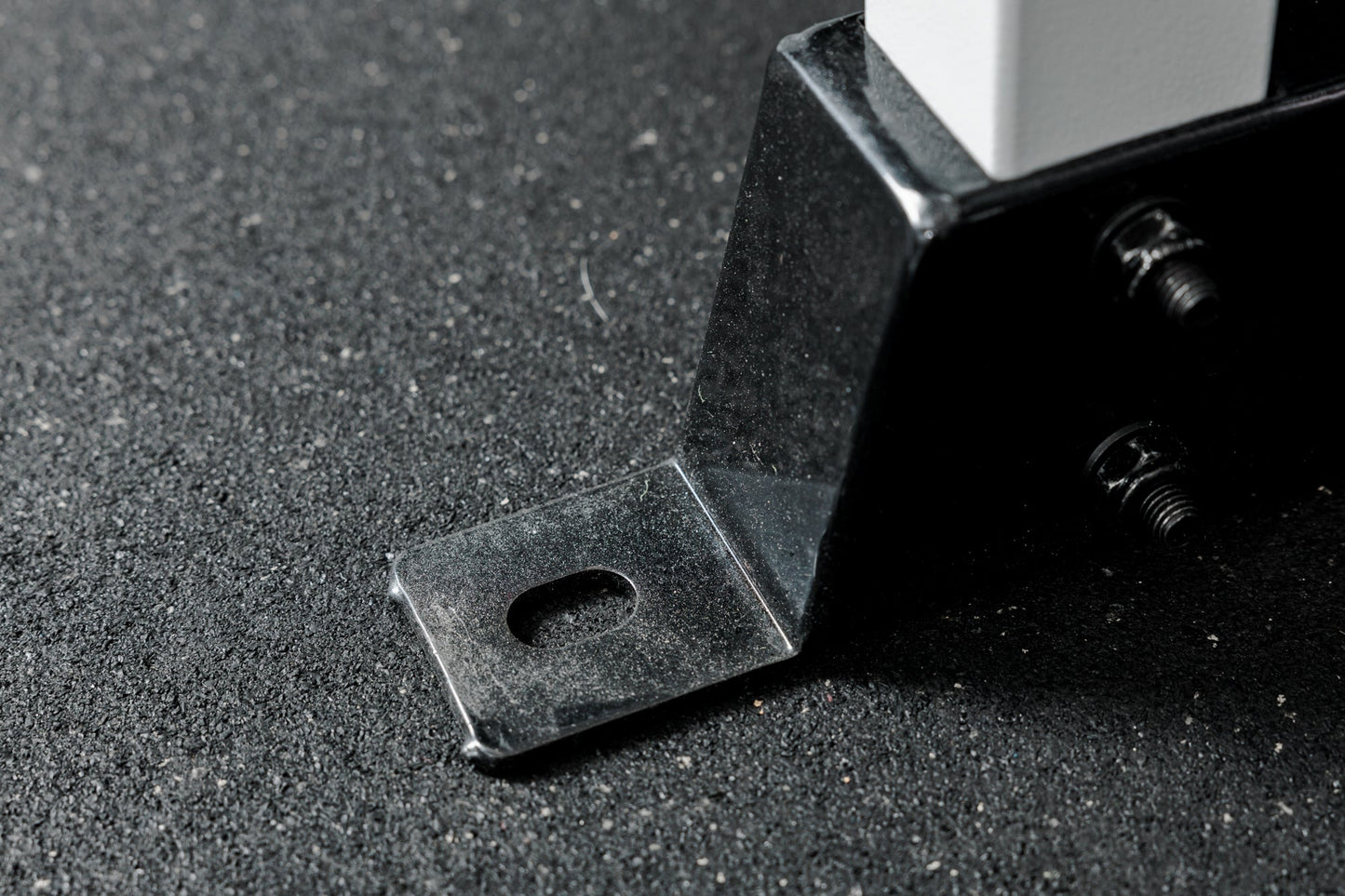

The rack does include built-in bolt plates at the base if you prefer or require a fixed setup—especially for high-intensity training, added peace of mind, or meeting facility mounting standards. Bolting it down is optional, but the feature is there when you want it. Hardware not included.

All of REP’s engineering and quality control are handled in-house, ensuring a safe, high-quality product. Every detail has been carefully considered by people who actually lift, and that attention to detail shows in everything — from the instruction manuals and packaging to the way the handles feel when you’re moving heavy weight. In contrast, many other companies outsource production to random factories and hope the products they import are safe and well made.

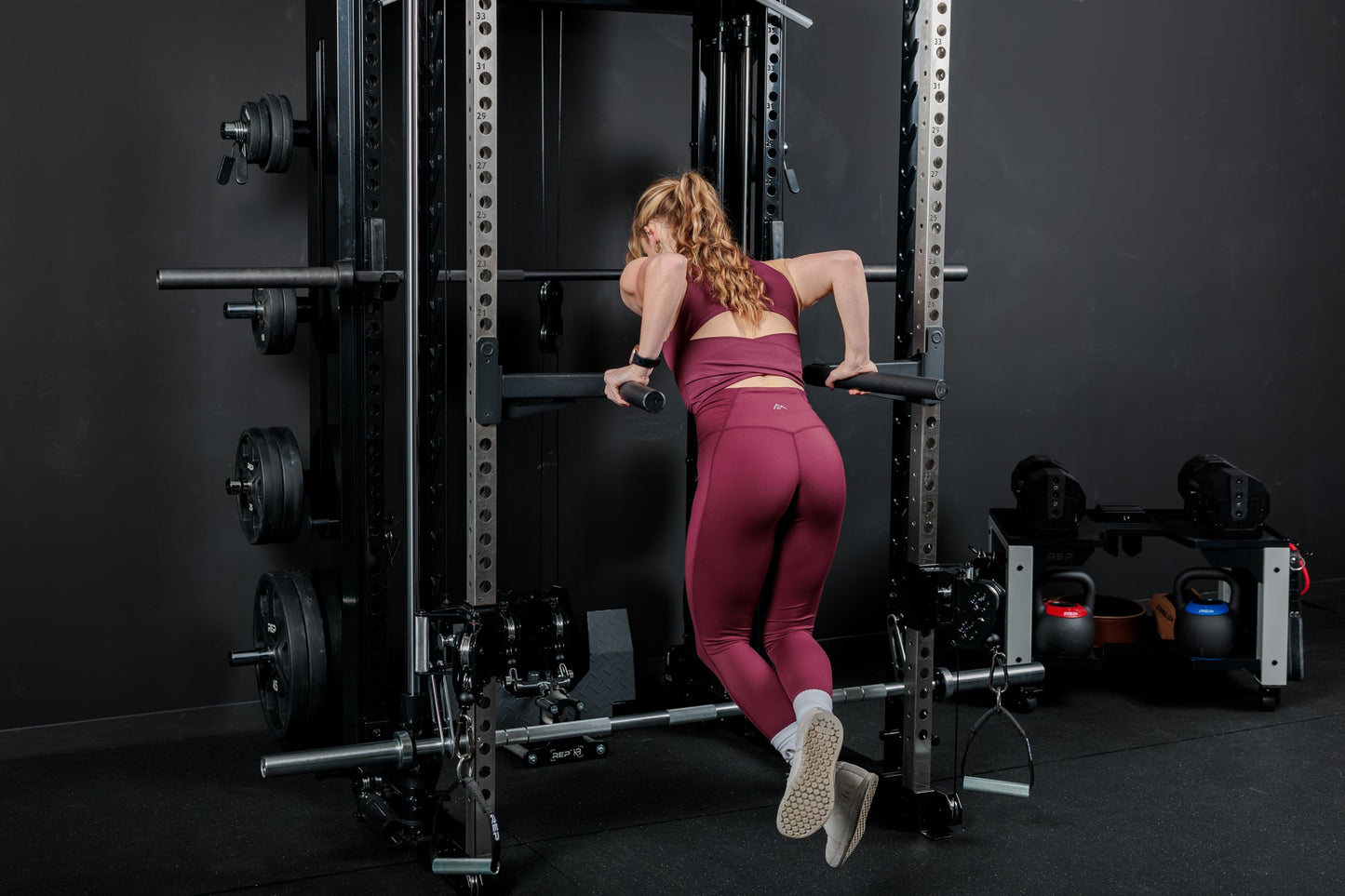

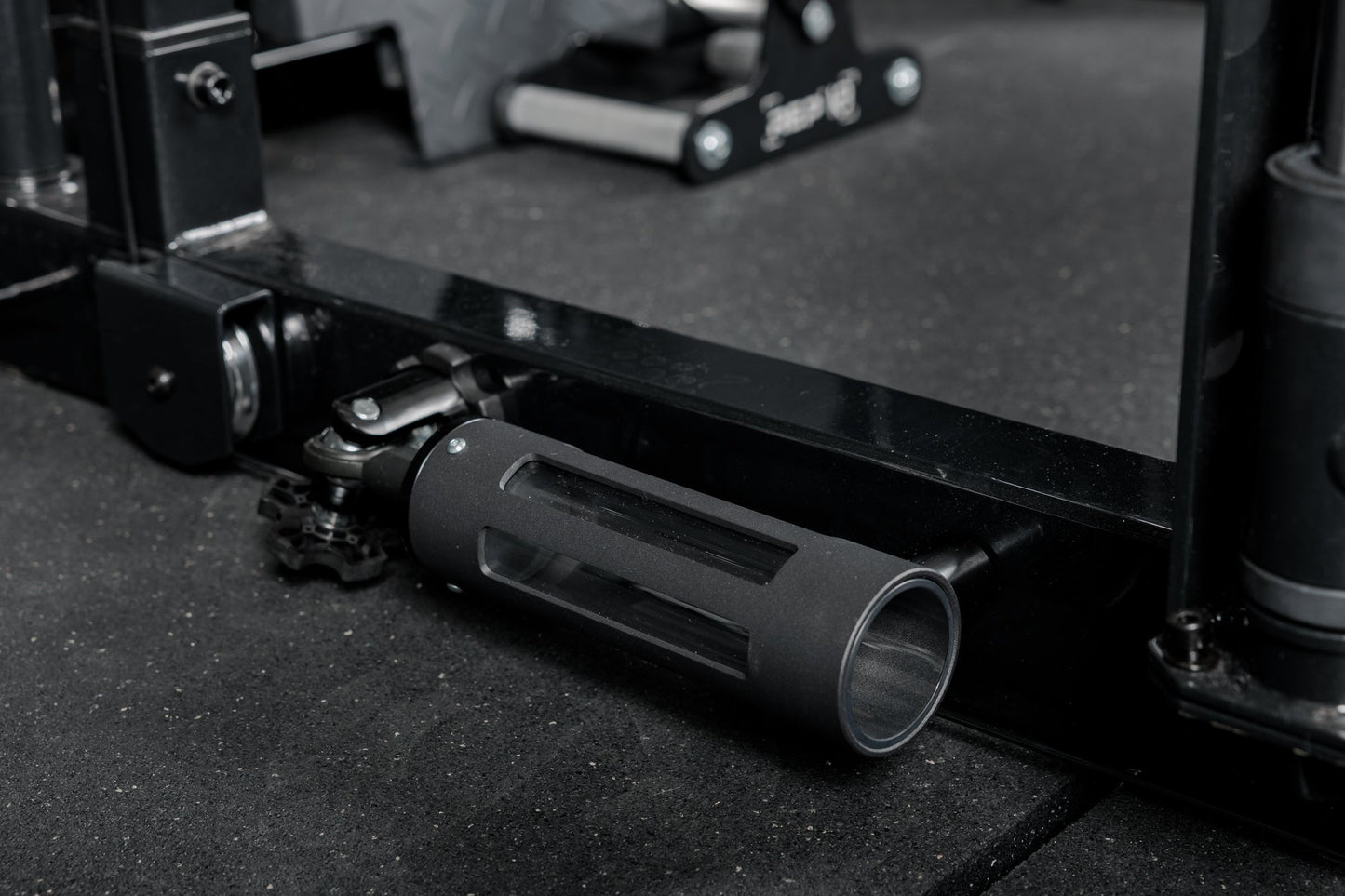

The Altitude™ Rack is built around a unified, all-in-one ecosystem—so every attachment designed for the Altitude™ Series fits seamlessly. This includes the Altitude™ smith machine, the Altitude™ cable attachment, and training add-ons like the Altitude™ strap safeties, leg roller, and drop-in dip. Each attachment is engineered specifically for the Altitude™ uprights, spacing, and height options, ensuring a clean fit, smooth movement, and a cohesive look across your entire setup.

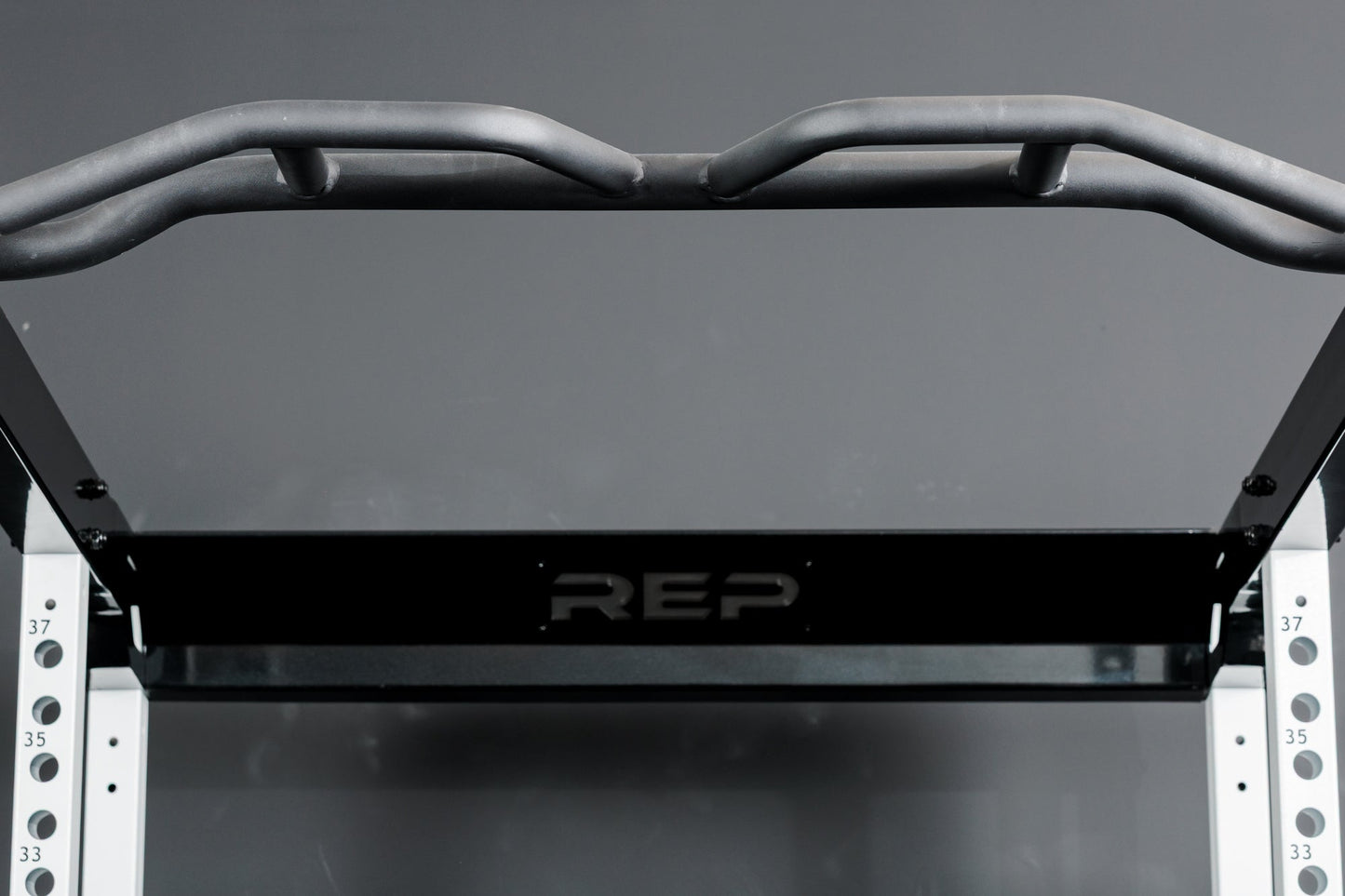

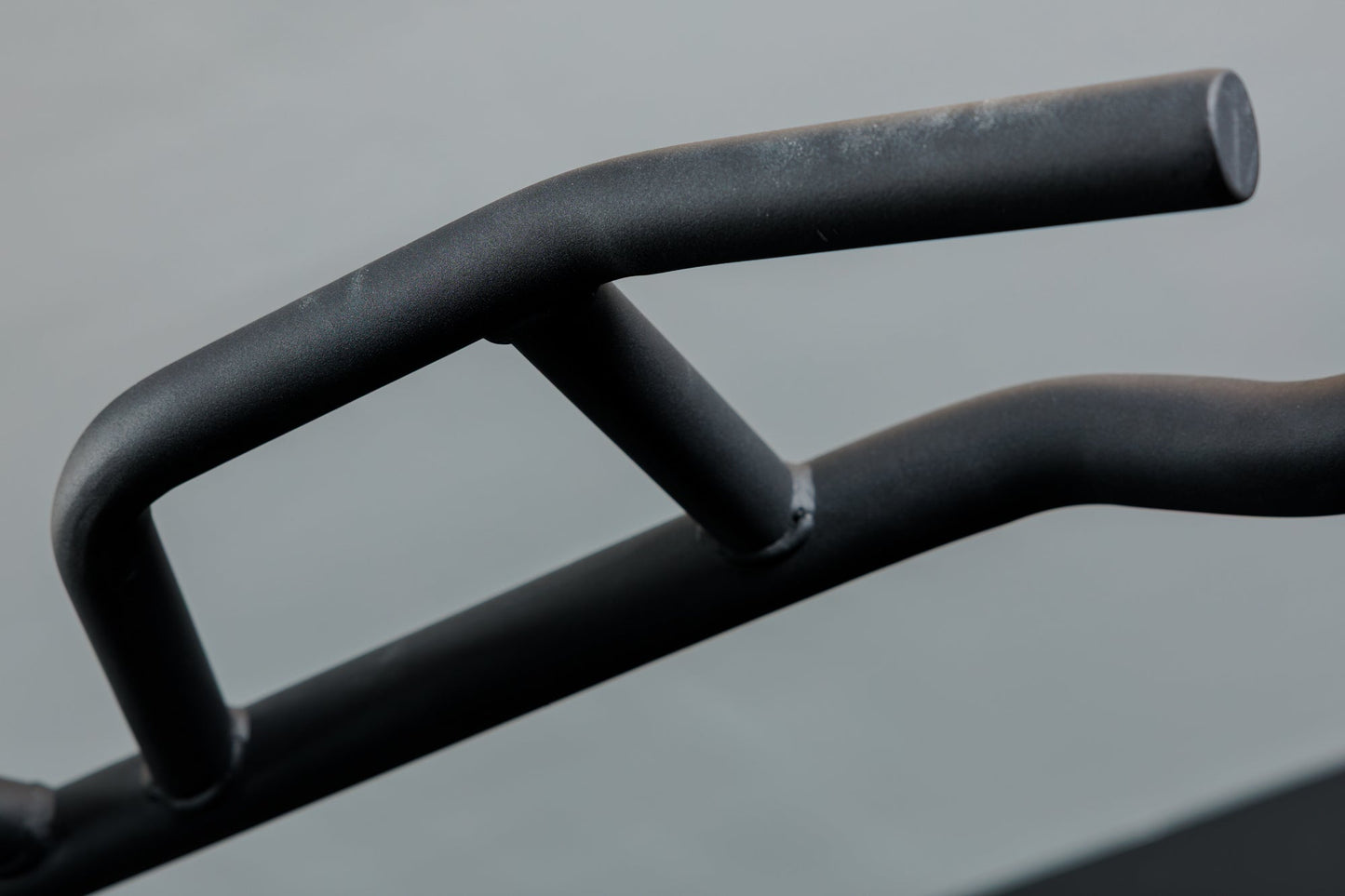

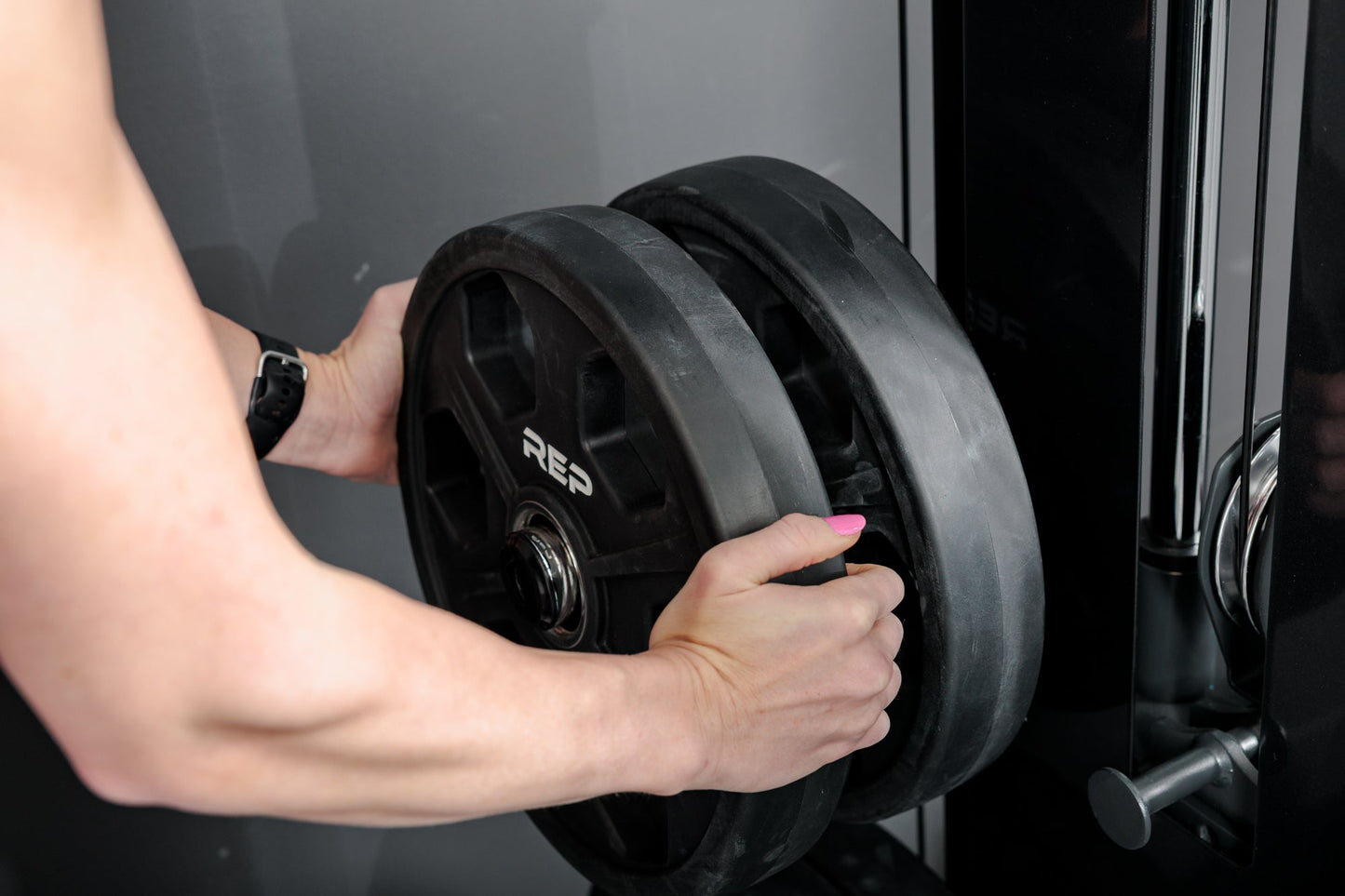

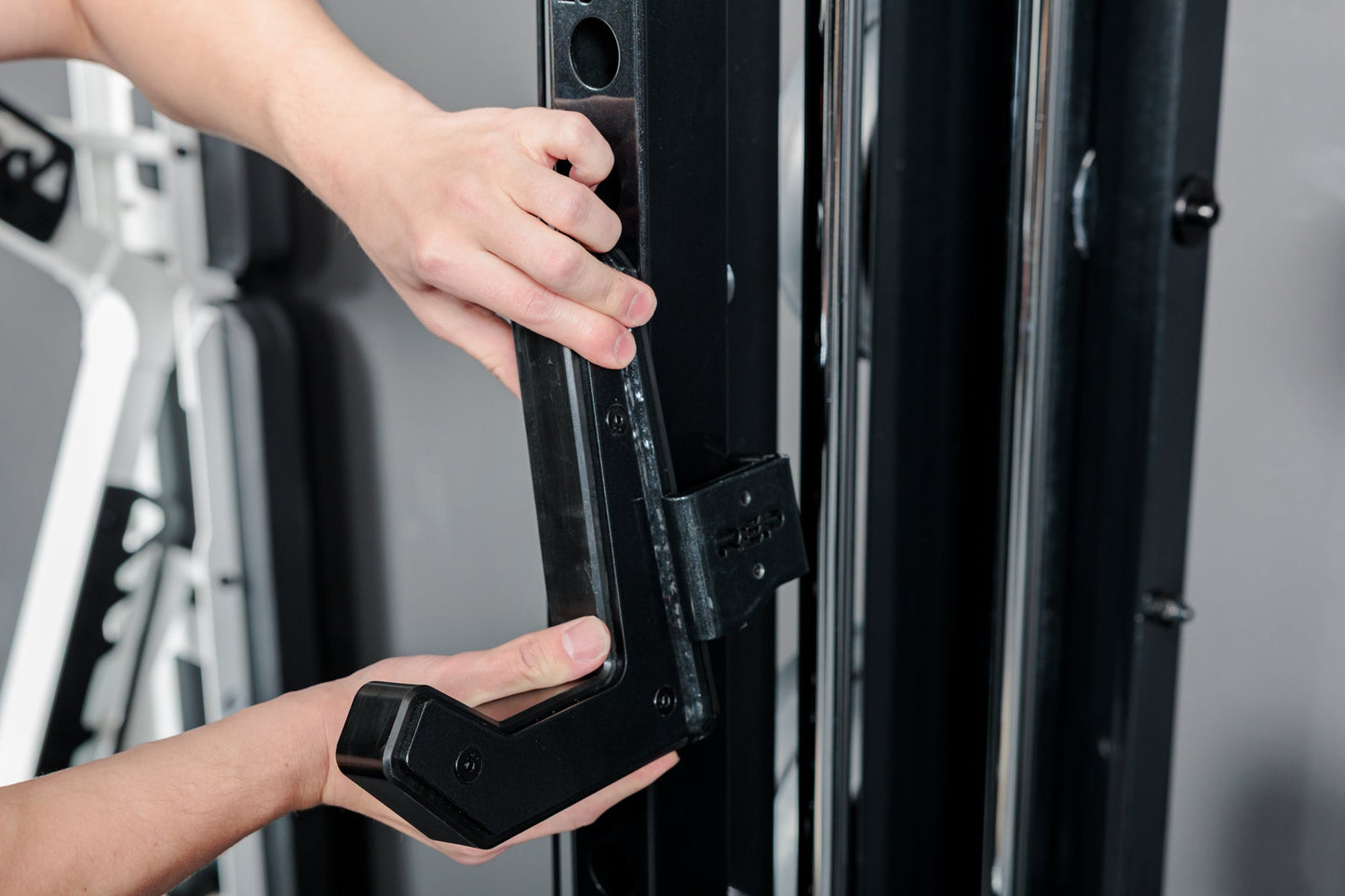

In addition to its dedicated ecosystem, every base Altitude™ power rack includes the essentials you need to start strong: Flat Sandwich J-Cups, a Multi-Grip Pull-Up Bar, Flip-Down Safeties, and four pairs of Weight Horns. Traditional 5000 Series or 4000 Series attachments are not cross-compatible, but the Altitude™ lineup offers everything you need to build a complete training system—power rack, Smith machine, functional trainer, storage, and specialty accessories—all in one unified platform.

The TRX System may be used provided the rack is securely stabilized—either by bolting it down or adding adequate weight.

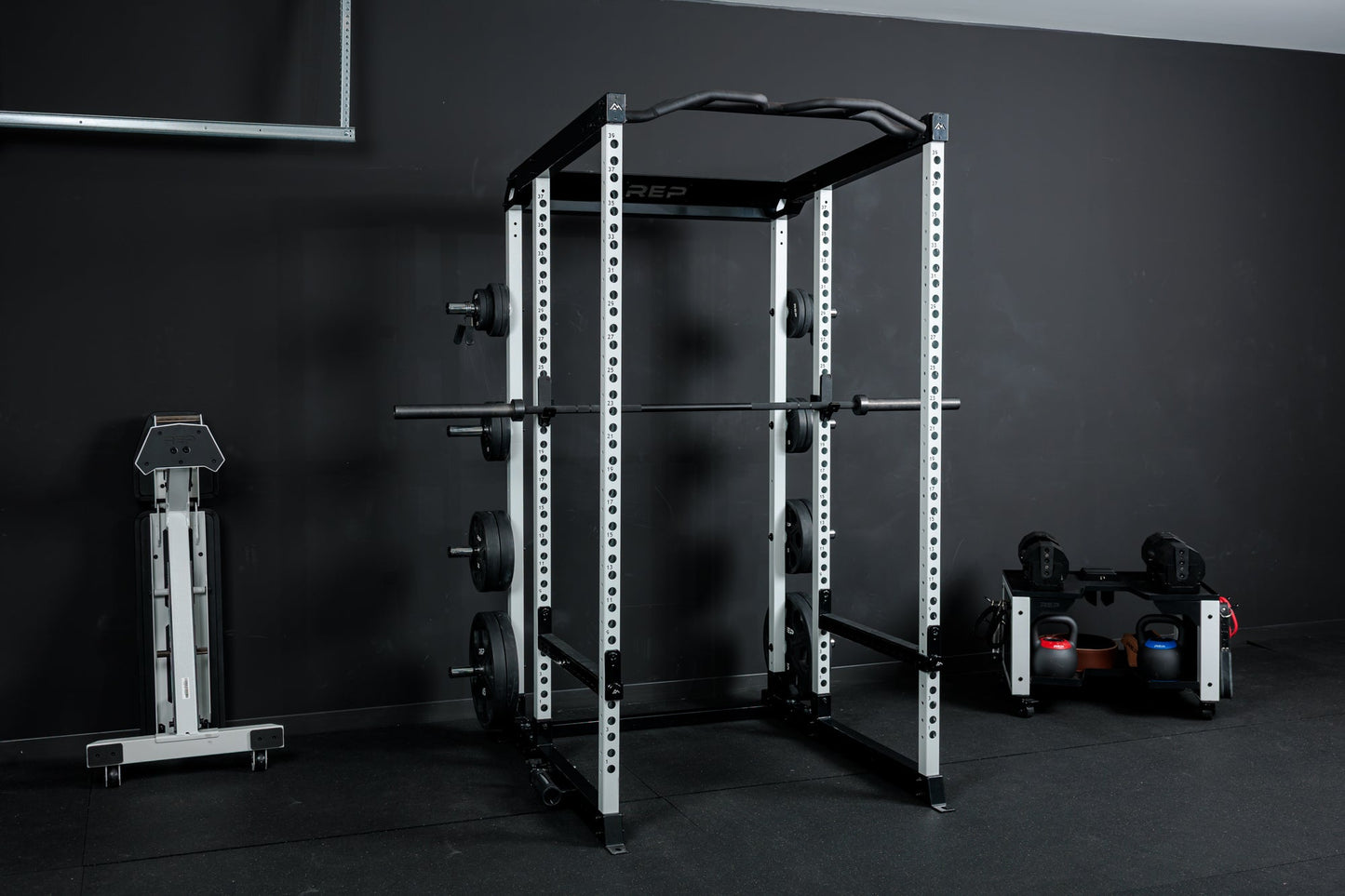

The rack base and upper crossmembers come in metallic black. You can choose your upright color with the options being matte black, metallic black, red, blue, white, olive, and stainless steel. The stainless steel option includes stainless front uprights with the middle and rear uprights being metallic black.

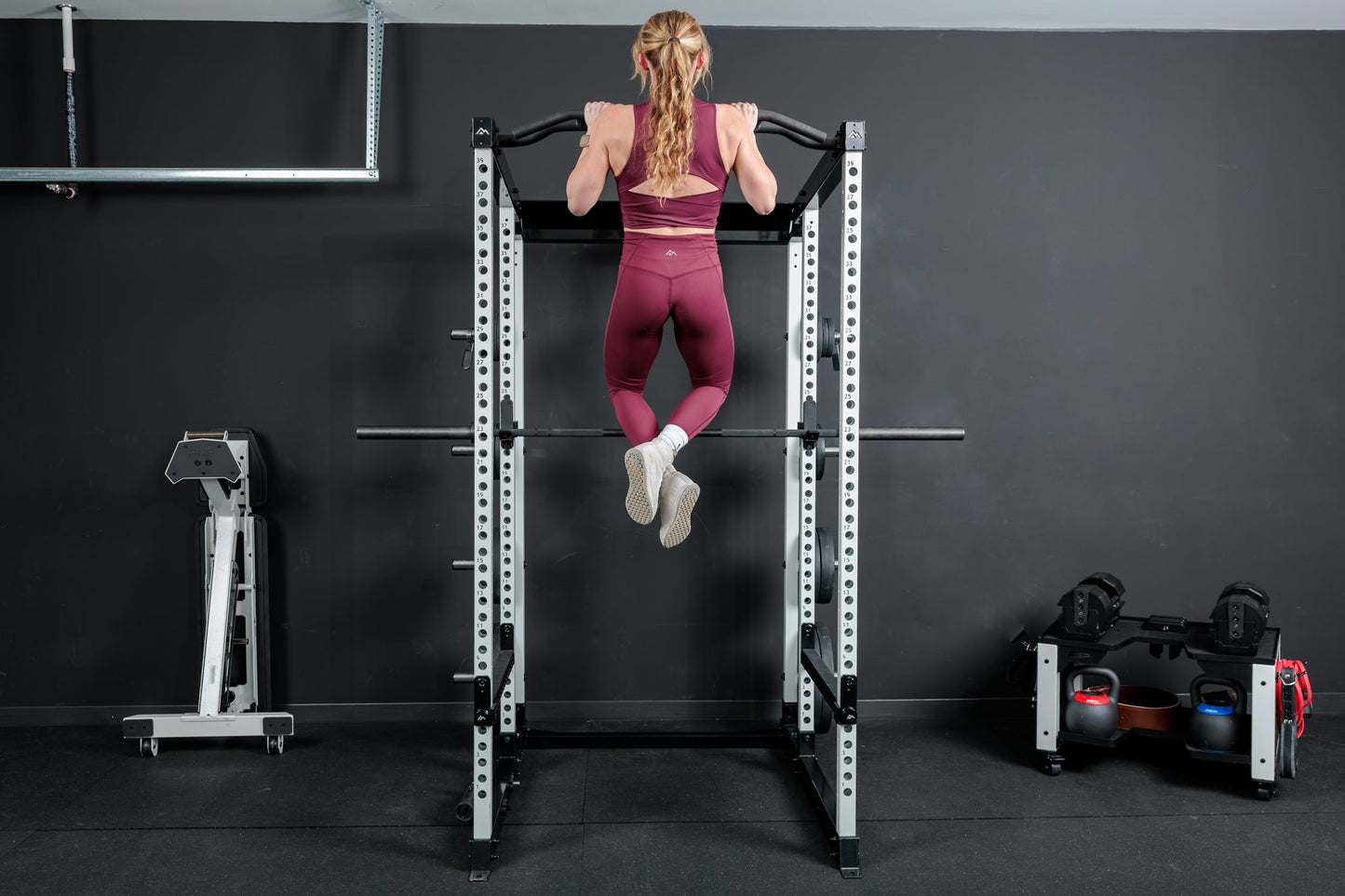

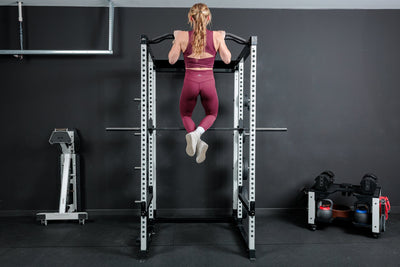

The 83” height hits the sweet spot: more usable space inside the rack and a better pull-up bar height, without jumping to an oversized footprint—so it still feels compact, garage-ready, and home-gym friendly.

No.

No — the Utility Seat isn’t compatible with the Altitude™ power rack. The flip-down safeties on the Altitude™ are a different size than the Utility Seat is designed to fit.

No, the Altitude™ power rack does not have built-in leveling capabilities.

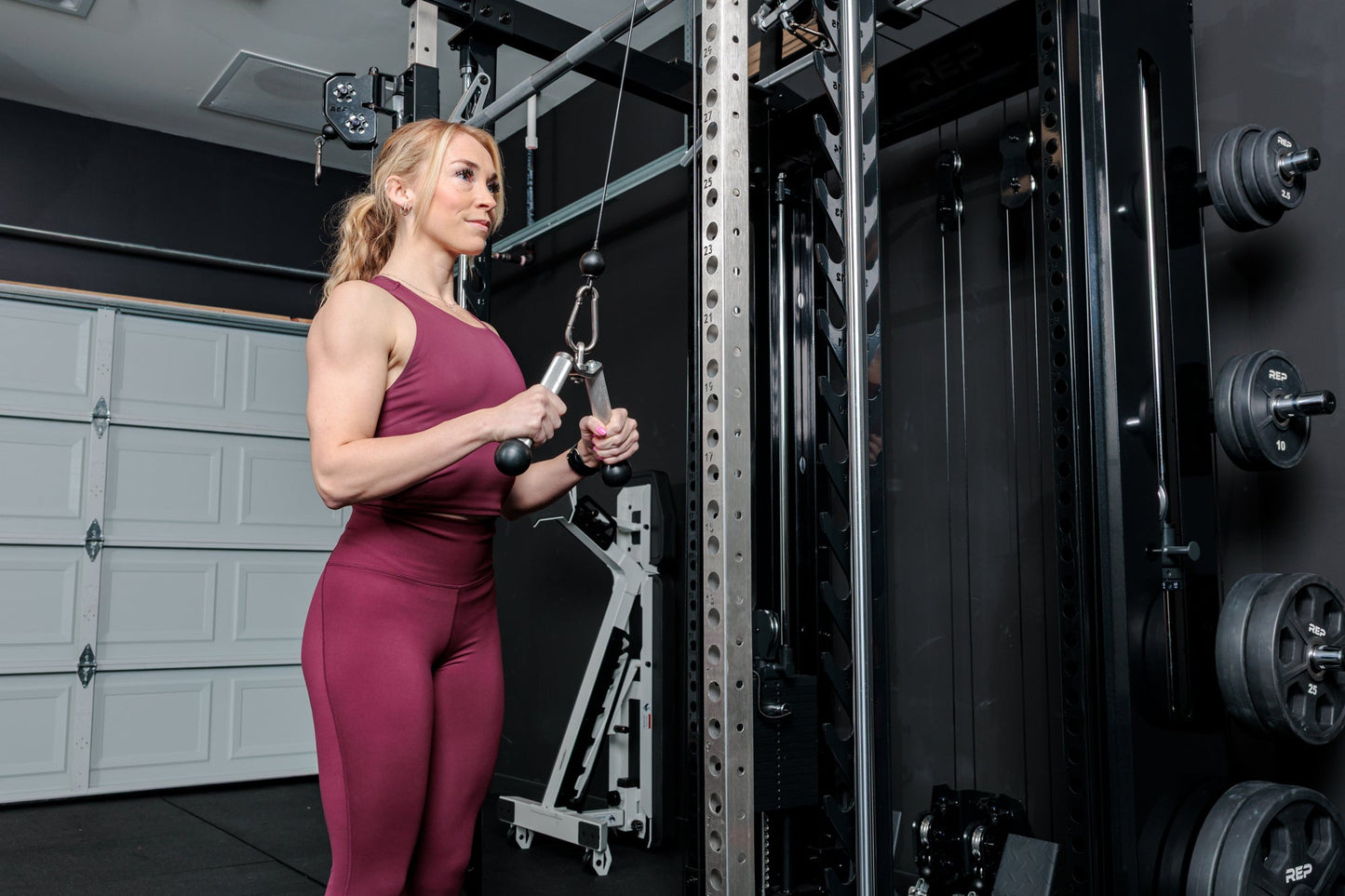

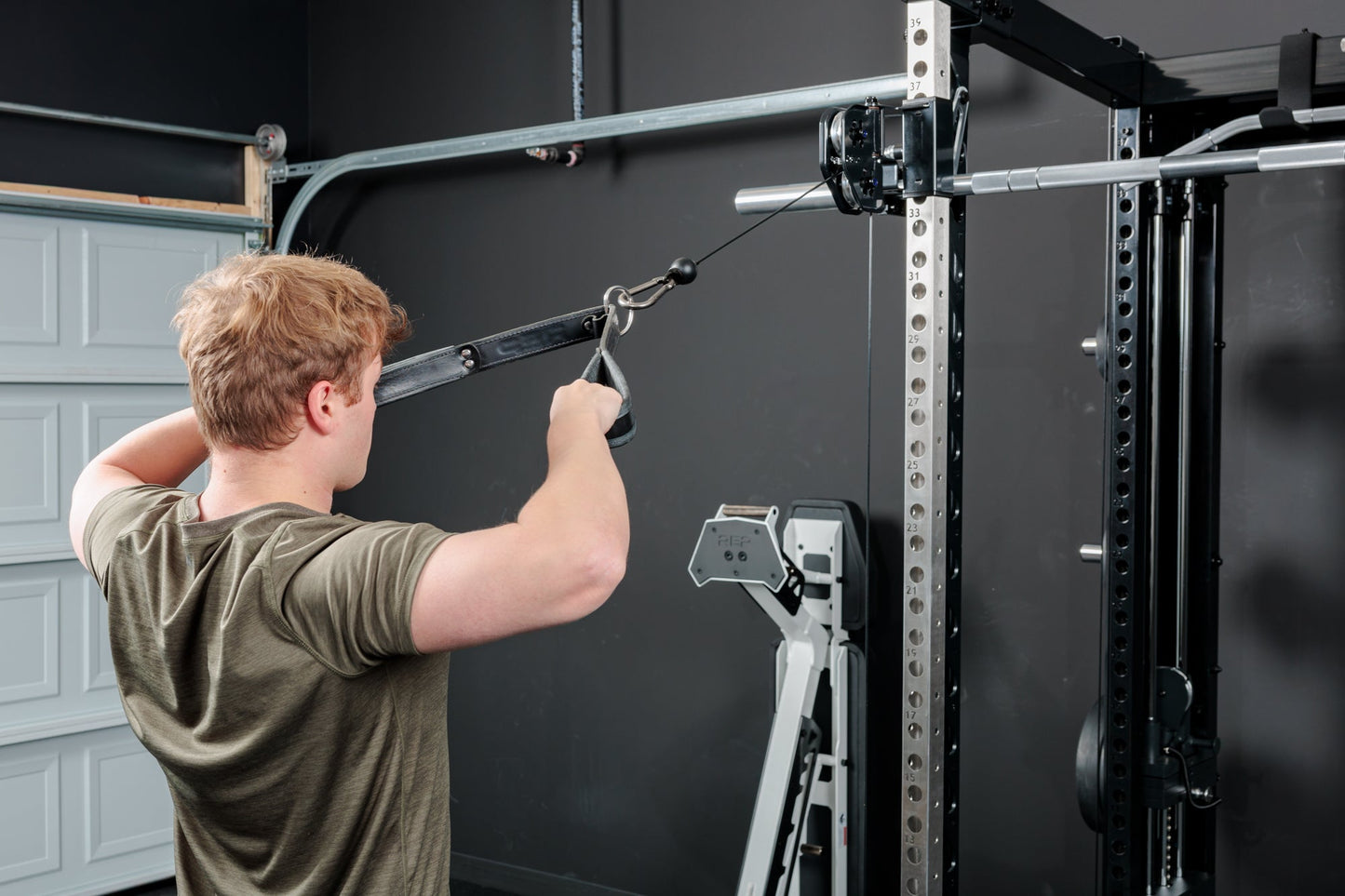

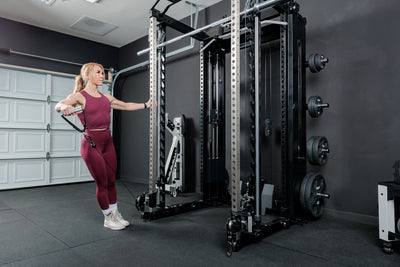

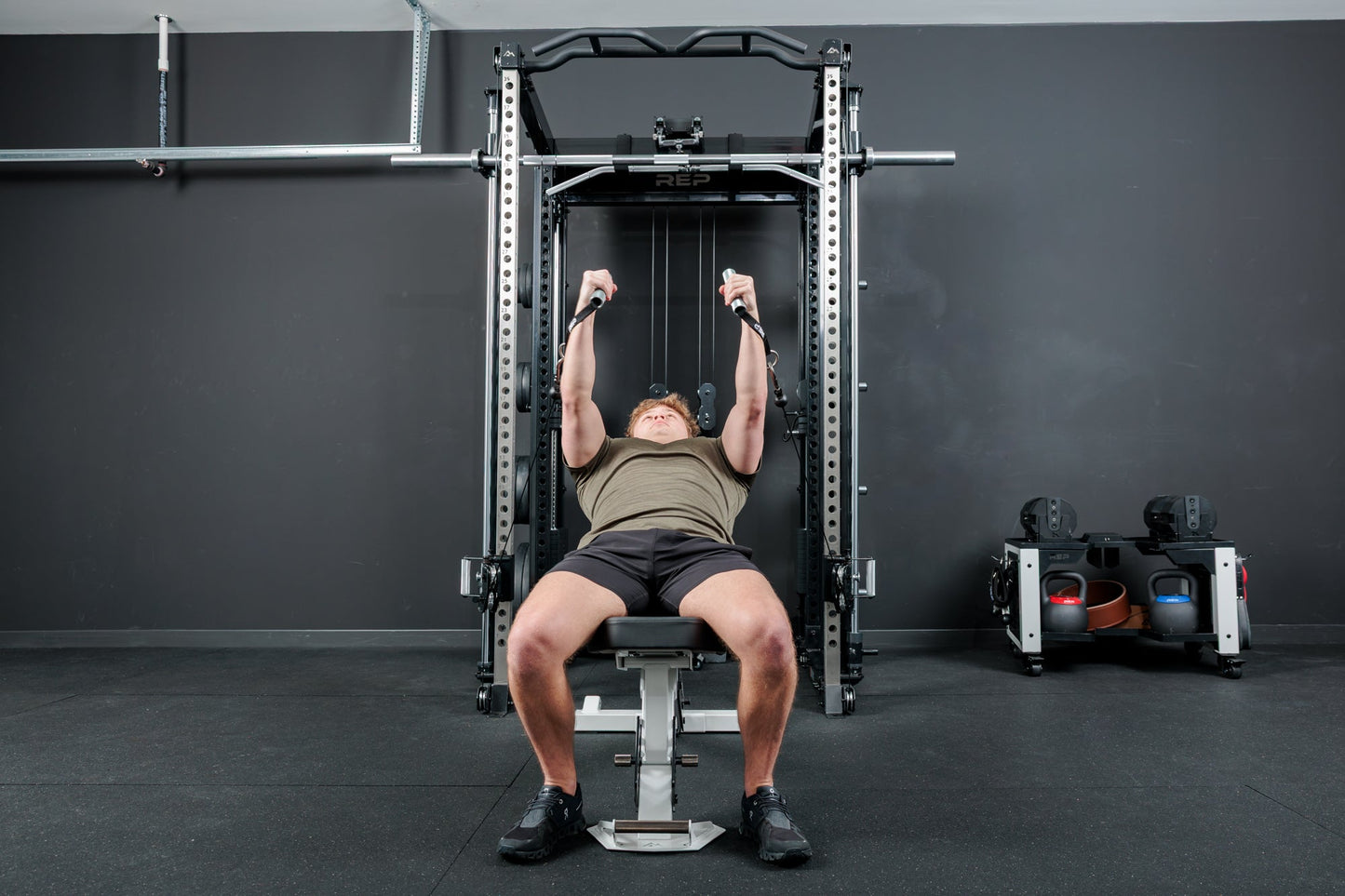

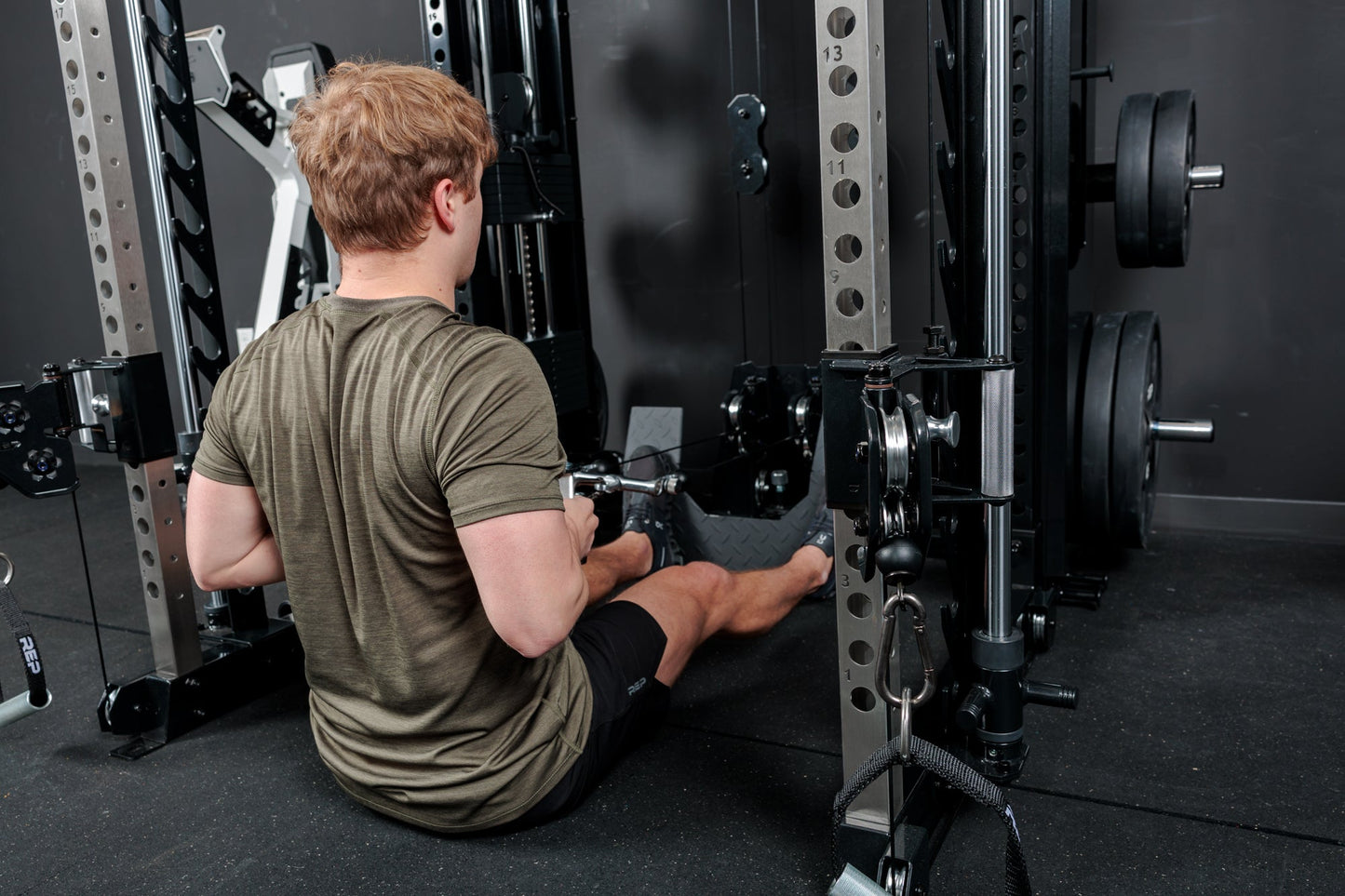

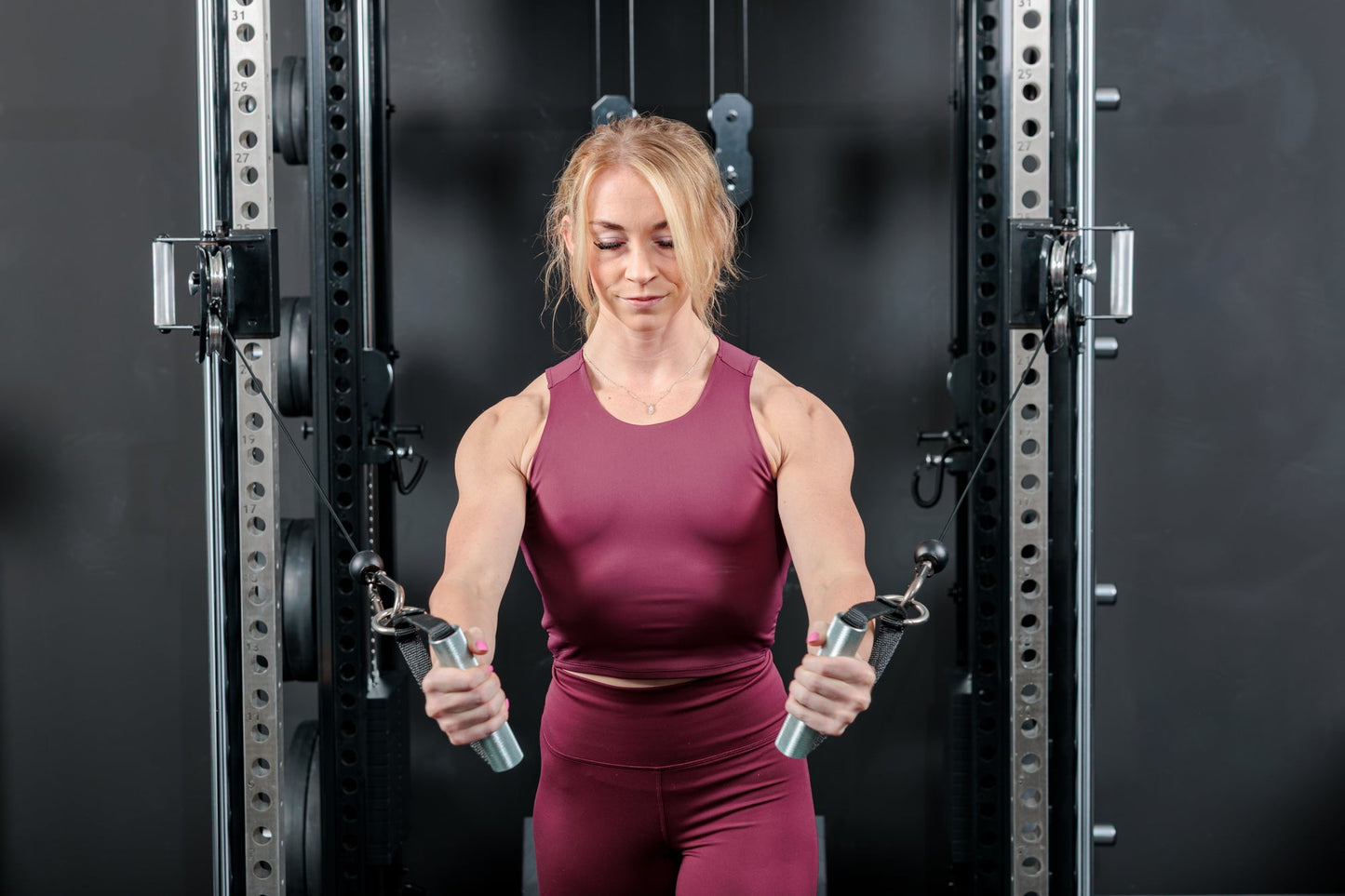

The number of cable exercises you can perform is long, but just to name a few: bicep curls, tricep pushdowns, tricep extensions, standing or seated chest flies, rear delt flies, lateral leg raises, donkey kicks, lateral and frontal arm raises, rehab/prehab shoulder work, mid rows (on the floor or on a bench), low rows (by sitting on a bench), lat pulldowns, wood chops, face pulls, chest press, belt squats with our attachment, and since there are so many attachment points, it is easy to superset between exercises.

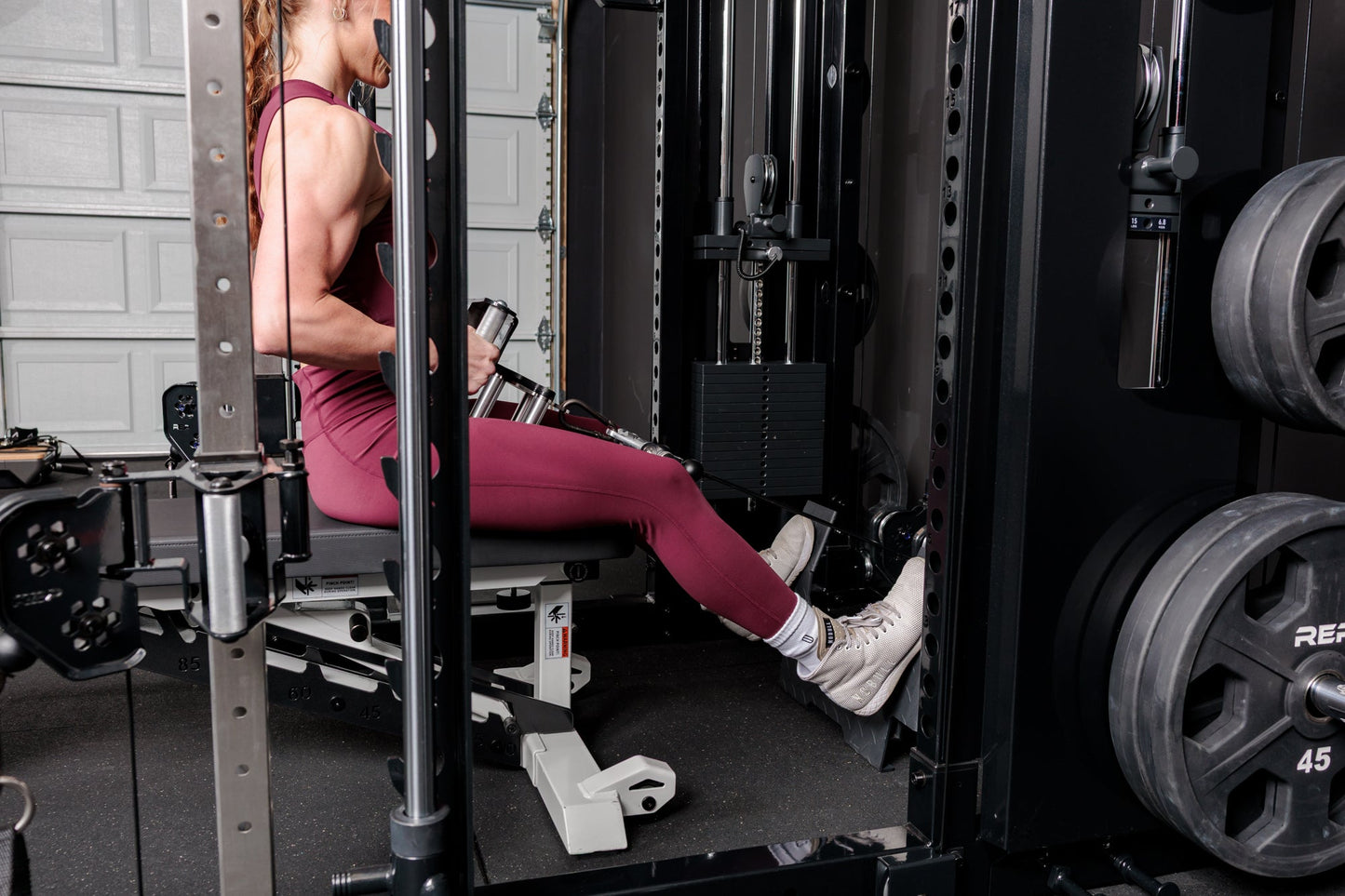

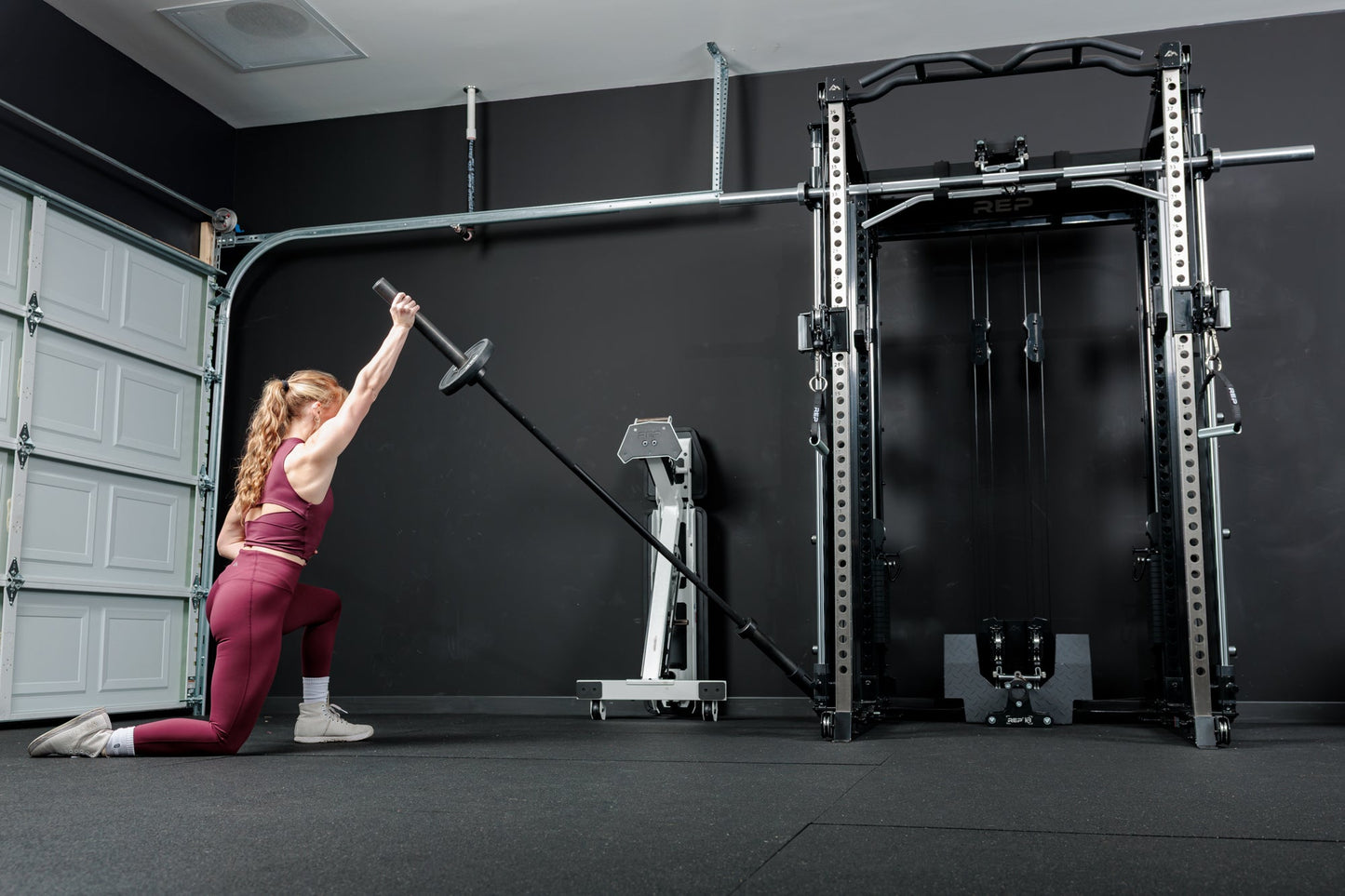

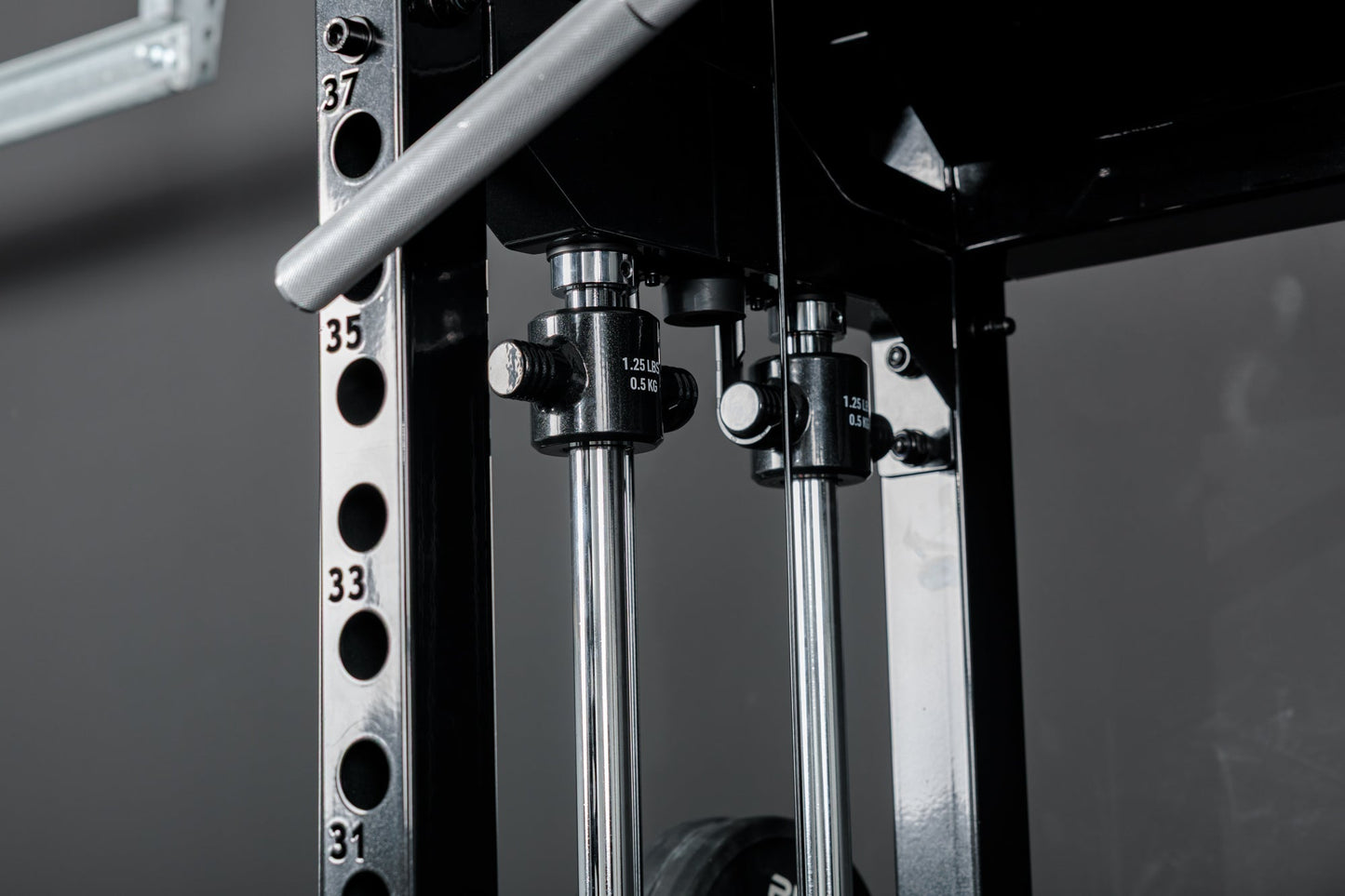

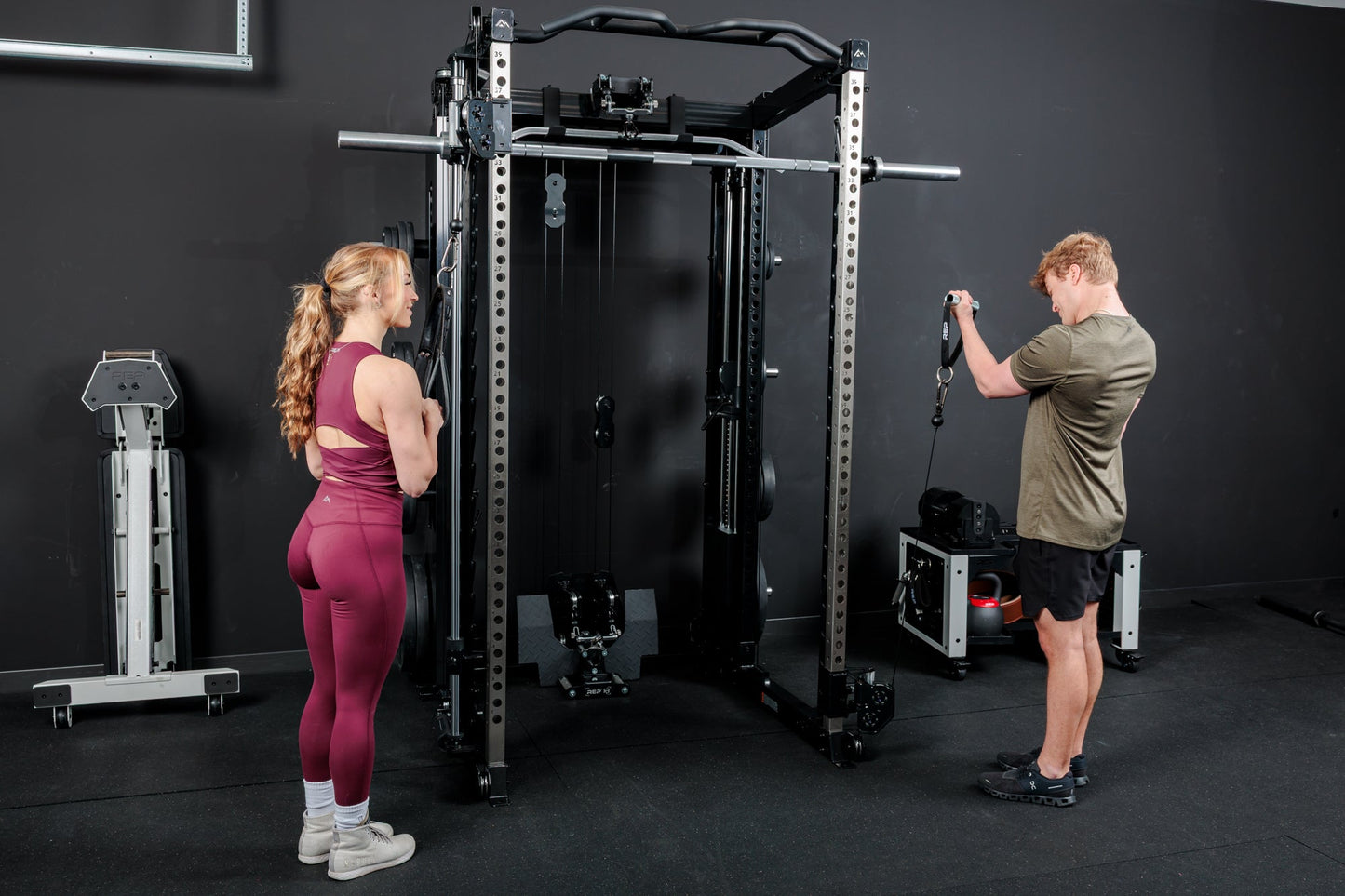

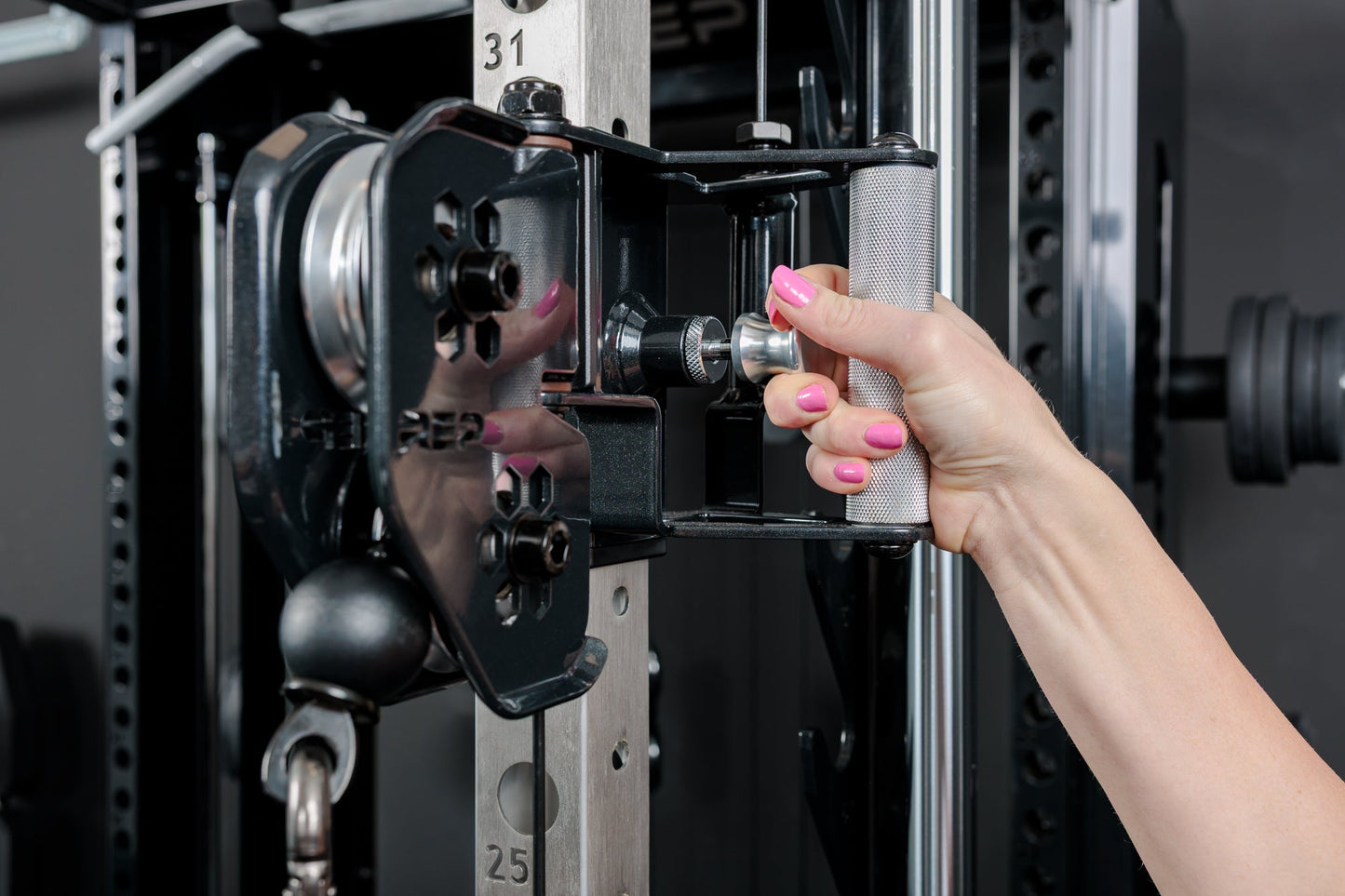

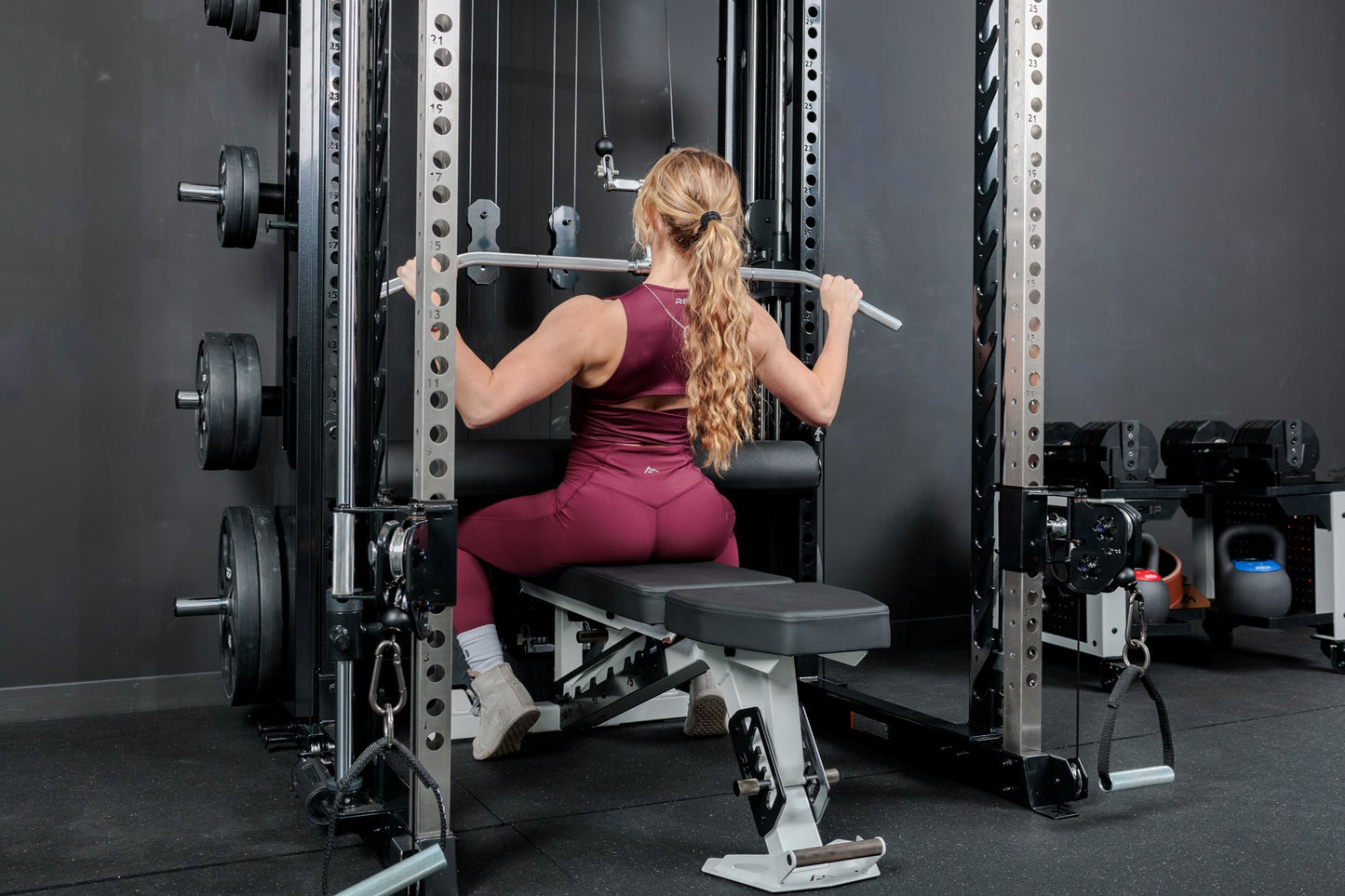

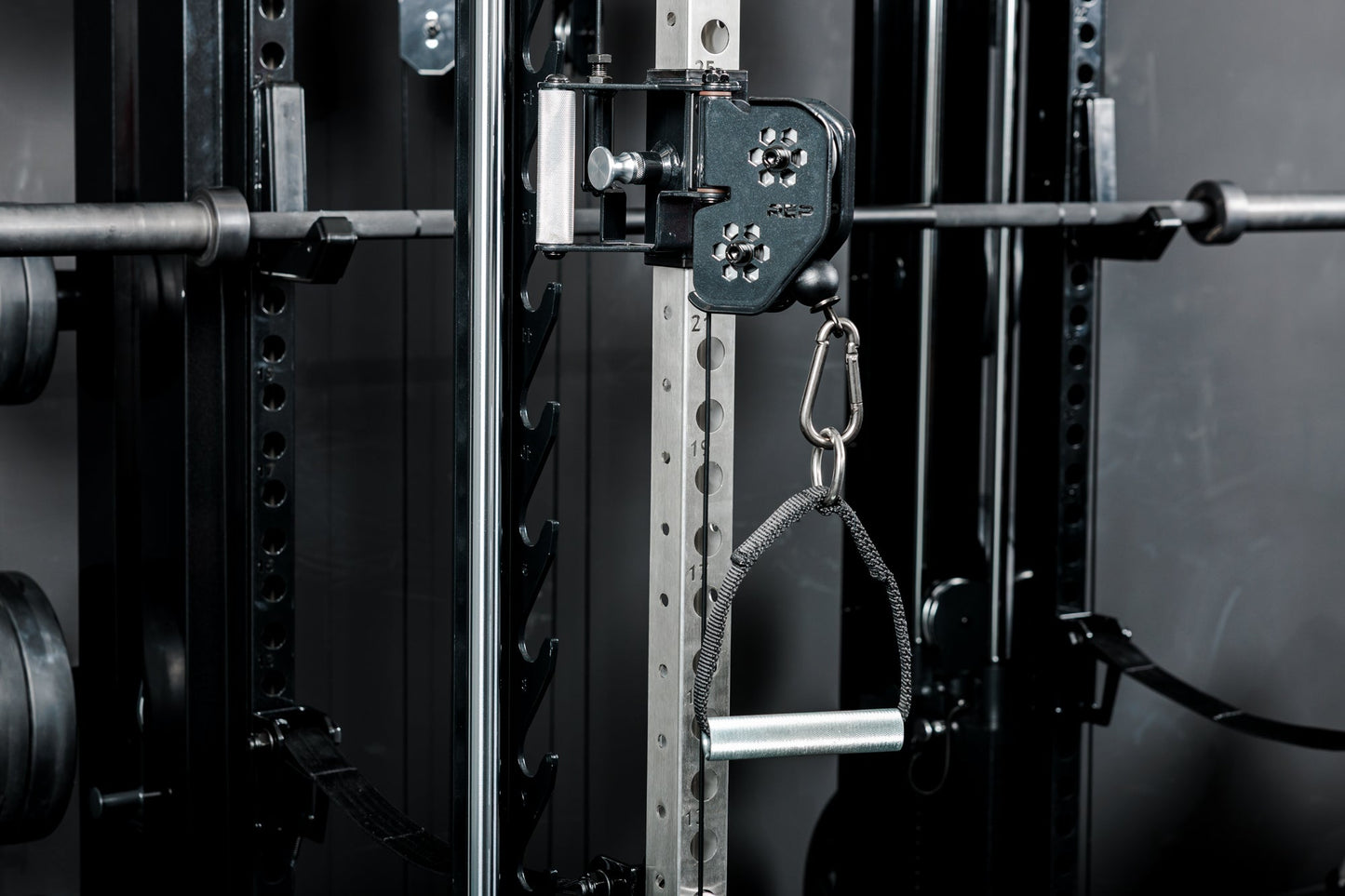

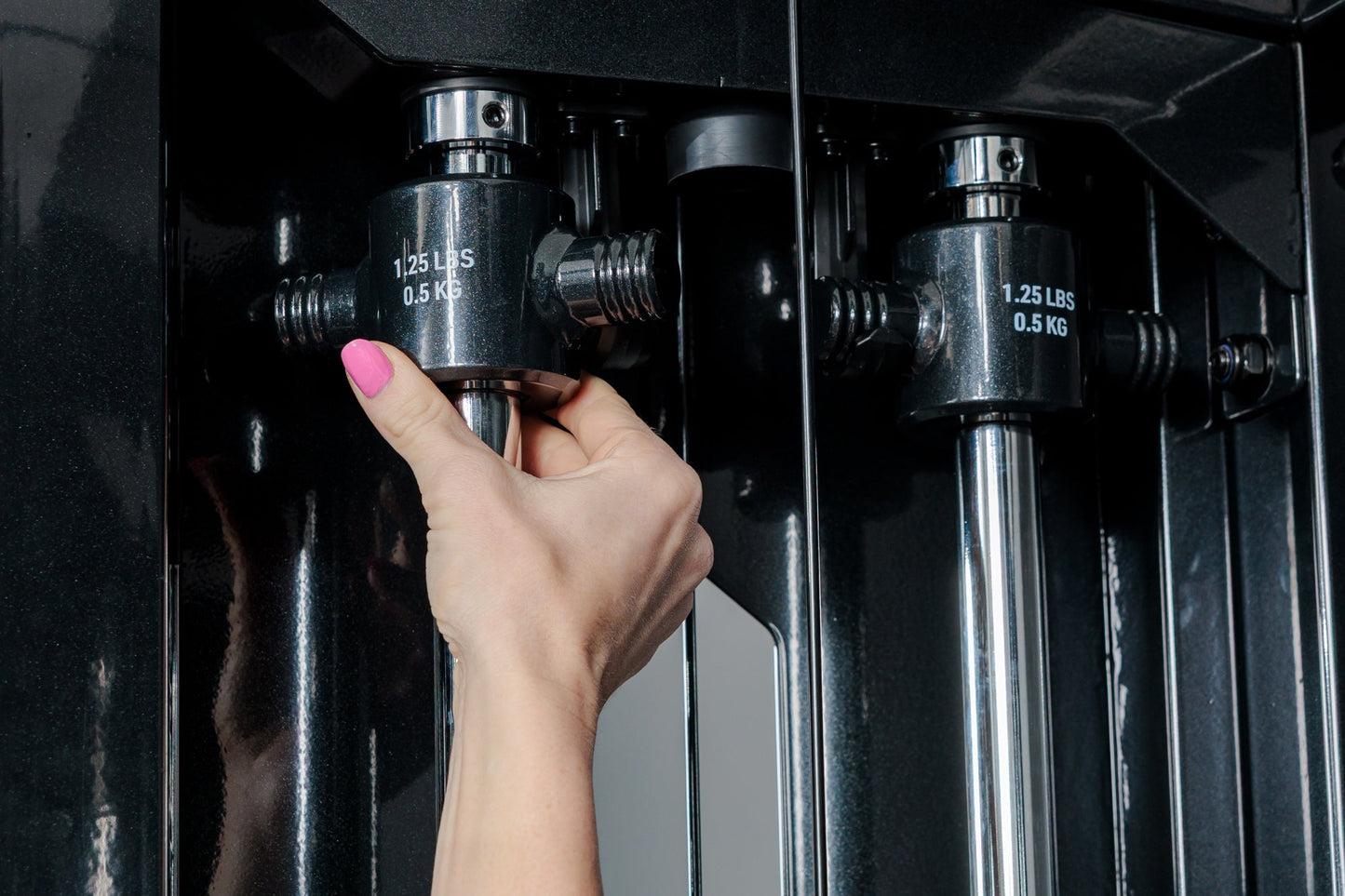

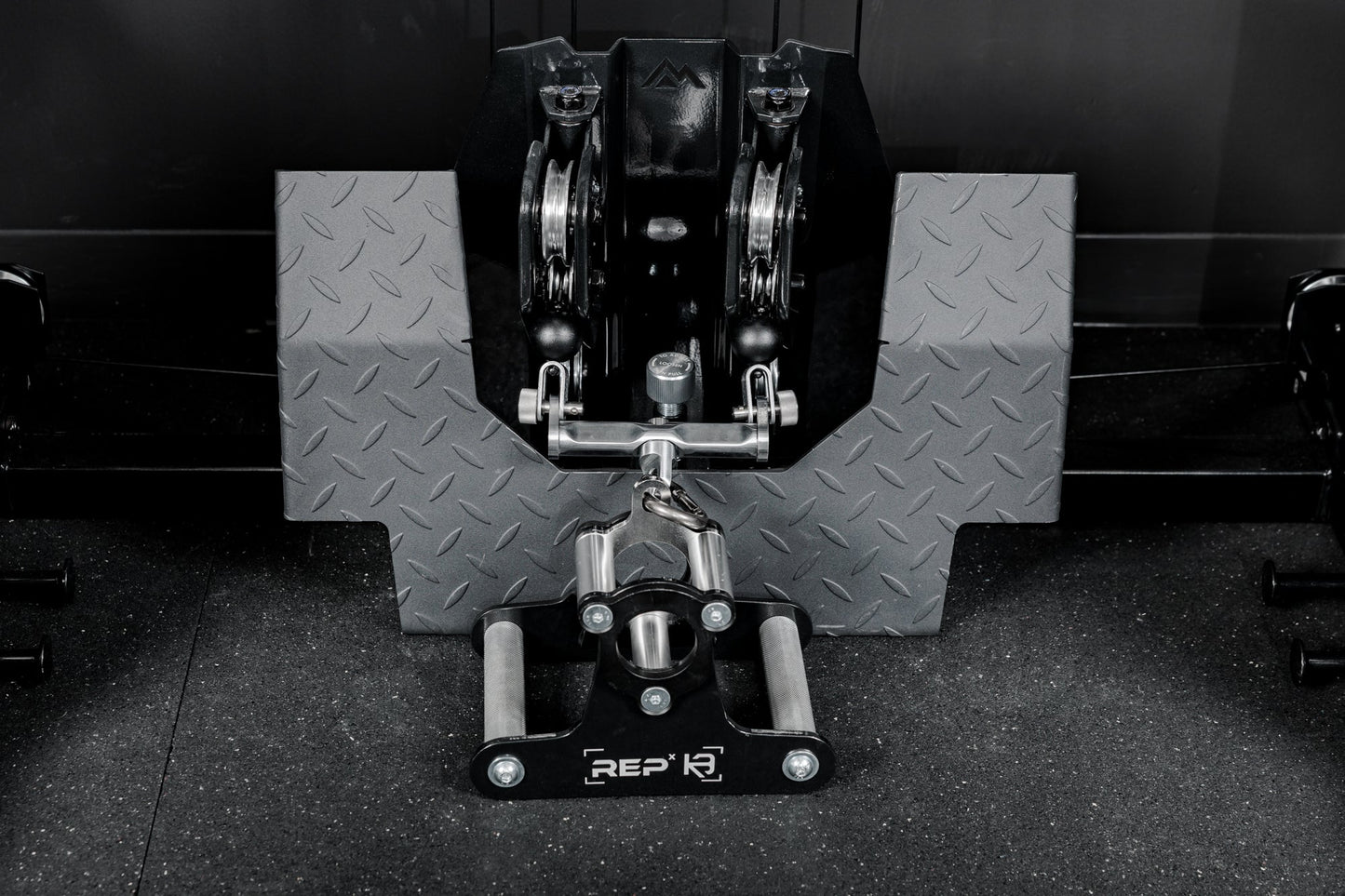

The Altitude™ cable attachment is purpose-built for the Altitude™ rack system, giving owners a seamless, space-efficient way to add lat pulldowns, low rows, and functional-trainer movements inside the rack footprint. It runs dual side stacks (like the Athena™) that are upgradable from 170 to 270 lbs per side (before the 2:1 ratio), includes the REP® x Kleva Built® Atlas™ Close-Grip Cable and Landmine Attachment out of the box, and uses two 1.25-lb adder weights per side for smoother, more precise micro-loading instead of a single 2.5-lb drop-down on the Ares™ 2.0.

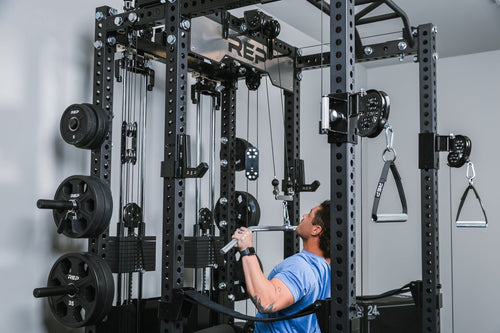

The Ares™ 2.0 is our flagship integrated cable system for PR-4000/PR-5000 racks, built as a higher-tier, feature-dense functional trainer/lat pulldown/low row solution within those rack ecosystems. Bottom line: both deliver serious cable capability, but they’re optimized for different rack lines, with differences in stack orientation, starting weights and upgrade paths, included attachments, and adder-weight design.

The 83" upright height option has a shorter range of motion for lat pulldowns, trolley height adjustments, and attachment height adjustments. This is due to the 83" rack being shorter than the 90" rack.

Yes—incline is limited to 45° when used on the middle uprights. Additionally, if you own the leg extension & leg curl bench attachment, it can further limit incline bench positioning, as the bench tube adapter may contact the footplate depending on user size.

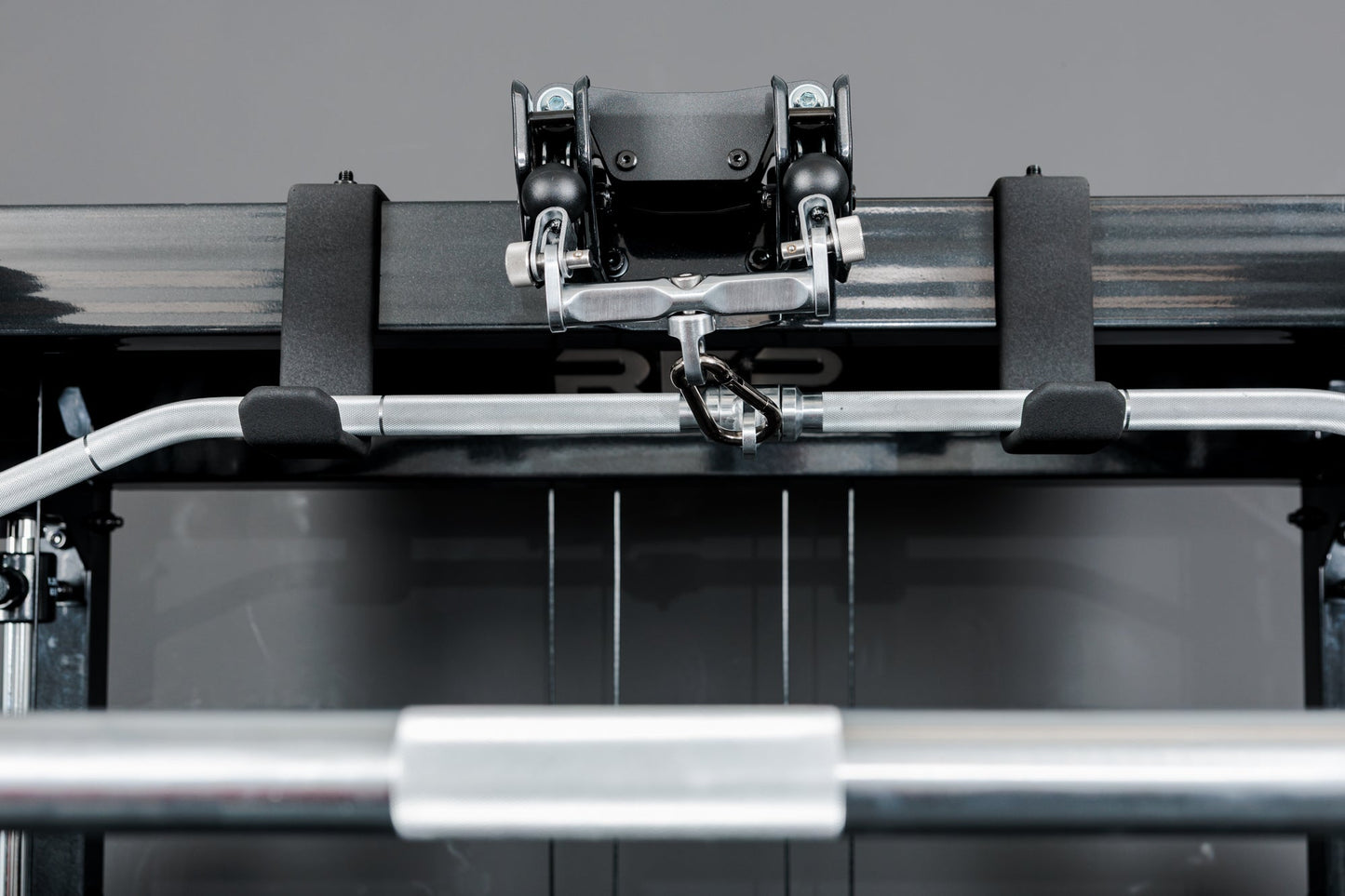

The routing is very similar to the Ares™ 2.0, with one key difference: the Altitude system uses side-mounted stacks like the Athena™. From the rear of the rack, the cables run up and over the top crossmembers, then travel down the outside paths to the lower pulleys. That layout keeps the cables smooth and consistent while preserving full range of motion and clean bench space inside the rack.

The weight stacks are 170lbs each with the option to upgrade them to 270lbs each. They also come with labels that tell you how the weight stacks feel for ease of use. No math required.

Yes, check out our cable attachments collection. Note: The headplate was designed to be light enough for lifters wanting to perform rehab motions like rotator cuff work. To keep the headplate from rising during weight adjustment, we recommend attachments on the front handles weighing less than 3.5lbs, or lightly press on the headplate while adjusting the pin if you're using a heavier attachment.

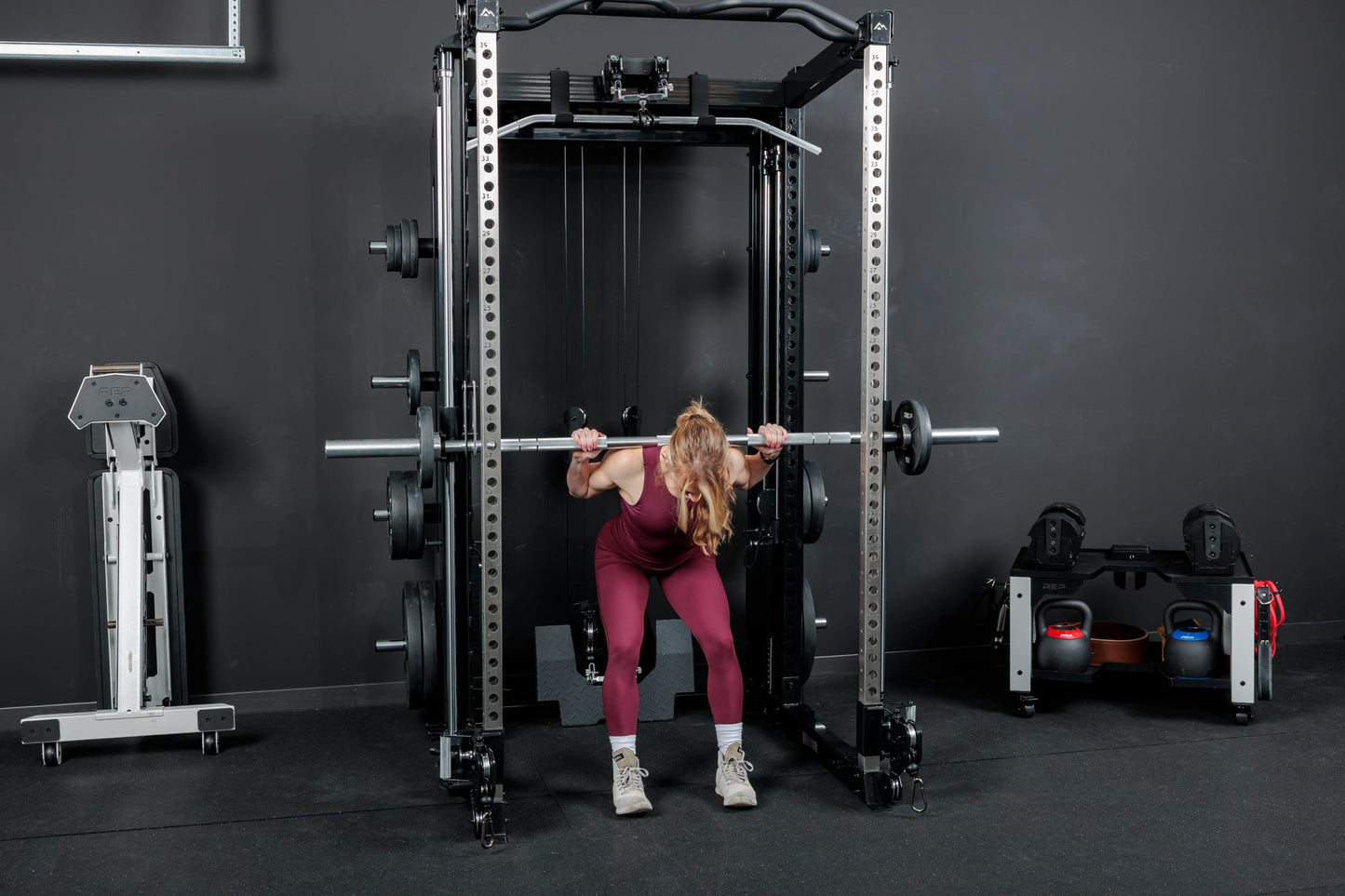

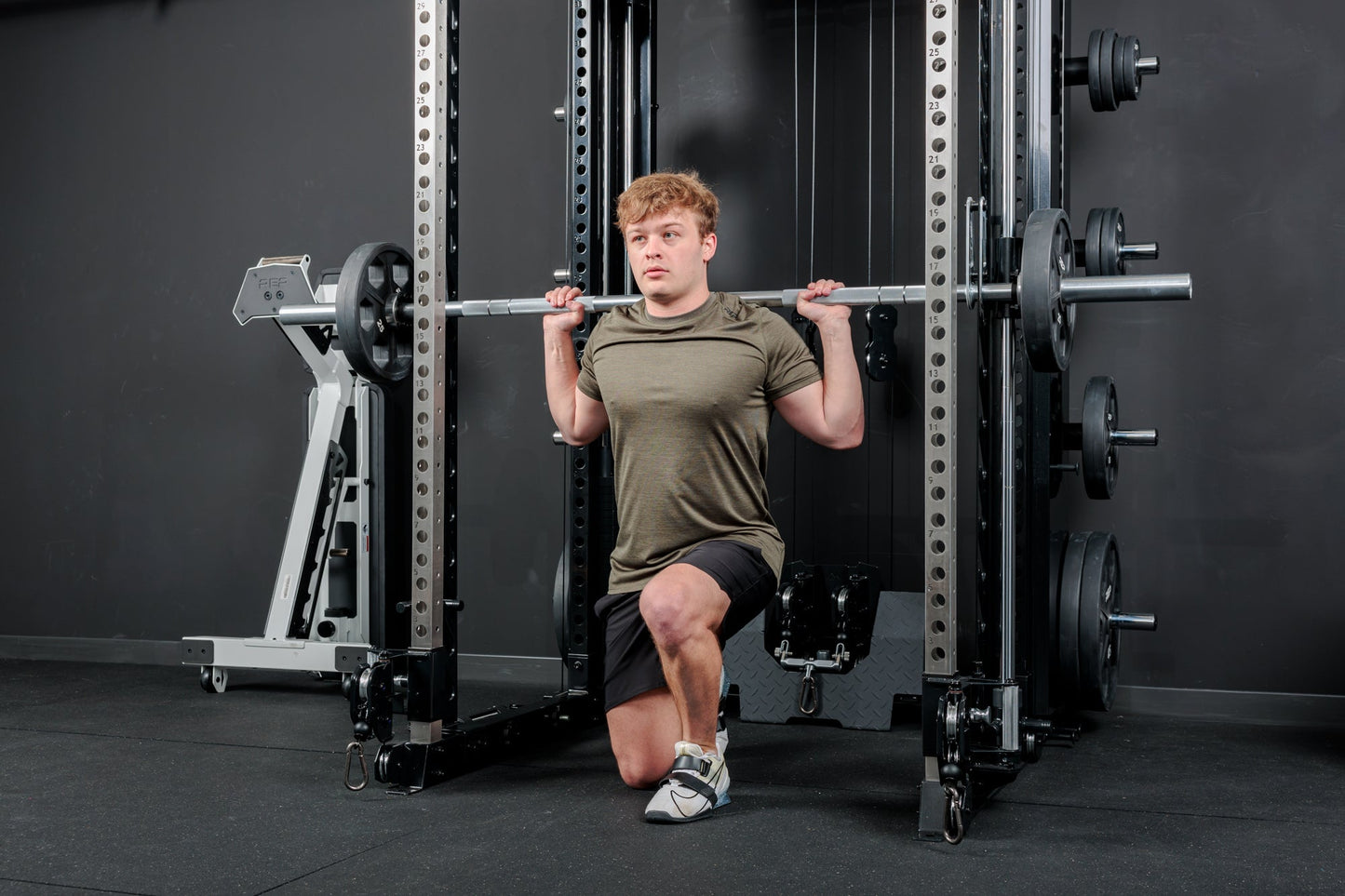

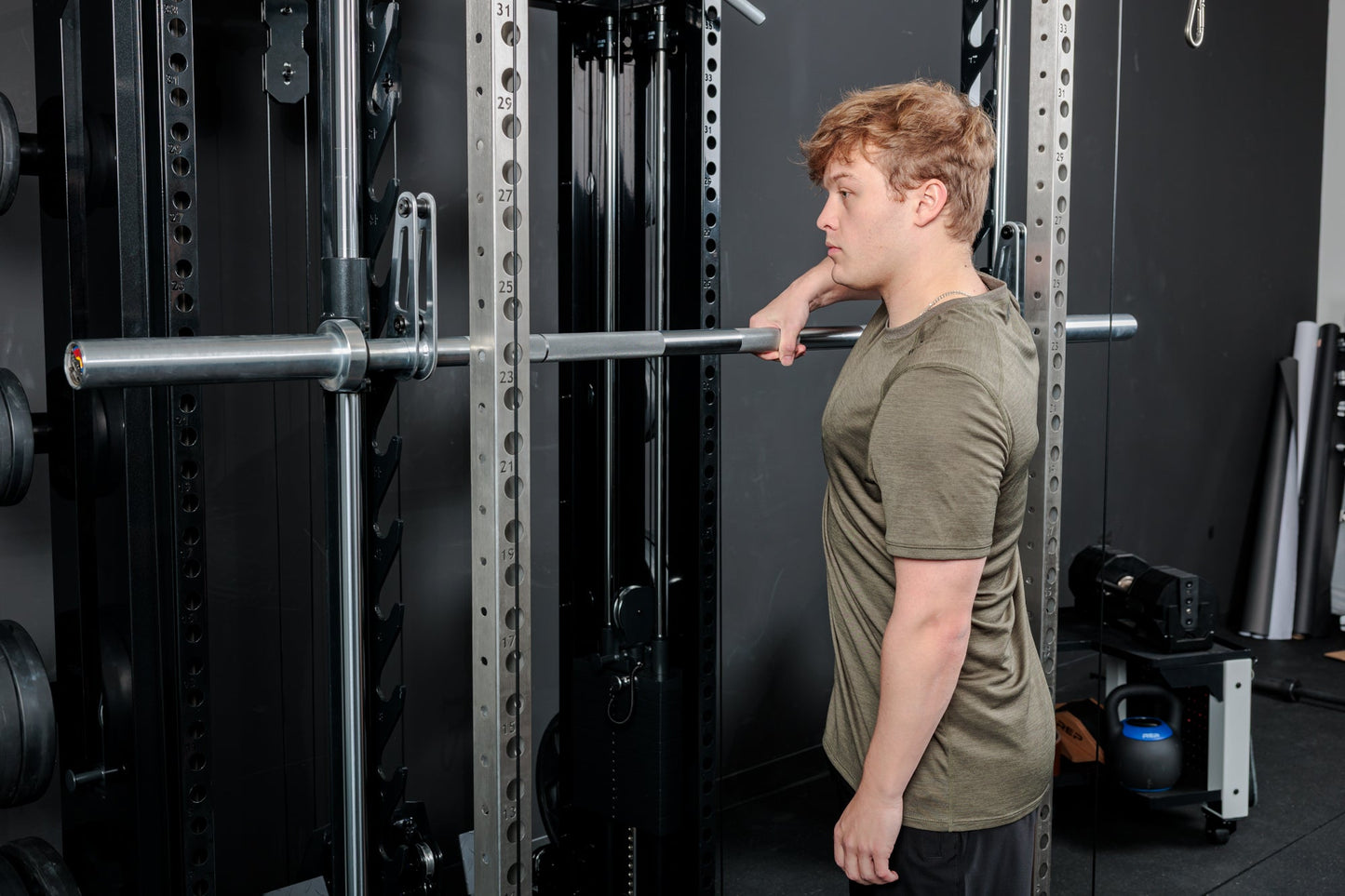

A Smith machine is good for beginners all the way to advanced athletes. Since the Smith machine has a fixed bar path and integrated safeties it’s a safer training tool than a free barbell, making it great for beginners or those trading alone. For advanced individuals, the Smith machine allows for increased hypertrophy as it can enable high muscle recruitment, activation and isolation, by removing the stability aspect from the exercise and really allowing the user to focus on the movement and target muscle. It also allows for a safer way to train to failure.

No, it’s vertical at 0 degrees.

The Smith machine is rated for 400 lb max loading. The bar weight is approximately 15kg. There is no counterbalance. REP has worked to lighten the bar enough so that a counterbalance was not needed and would only increase complexity and price of the product.

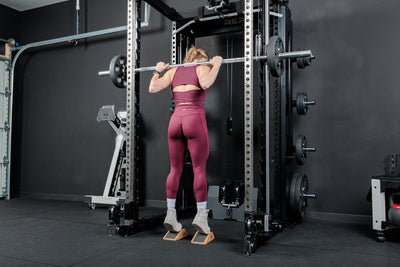

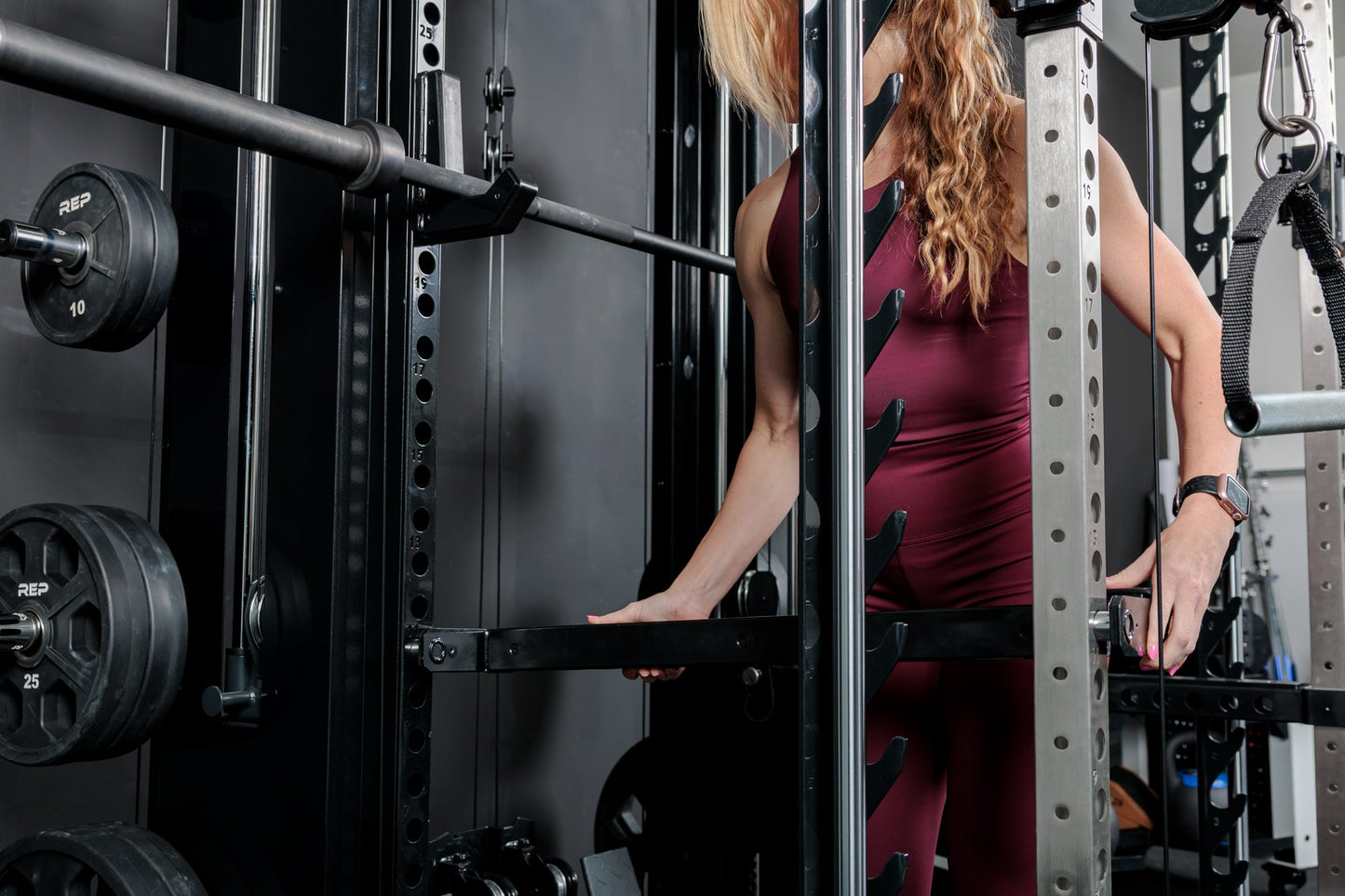

Yes, the smith machine attachment mounts to the outside of the rack frame, which allows you to use your safeties as normal.

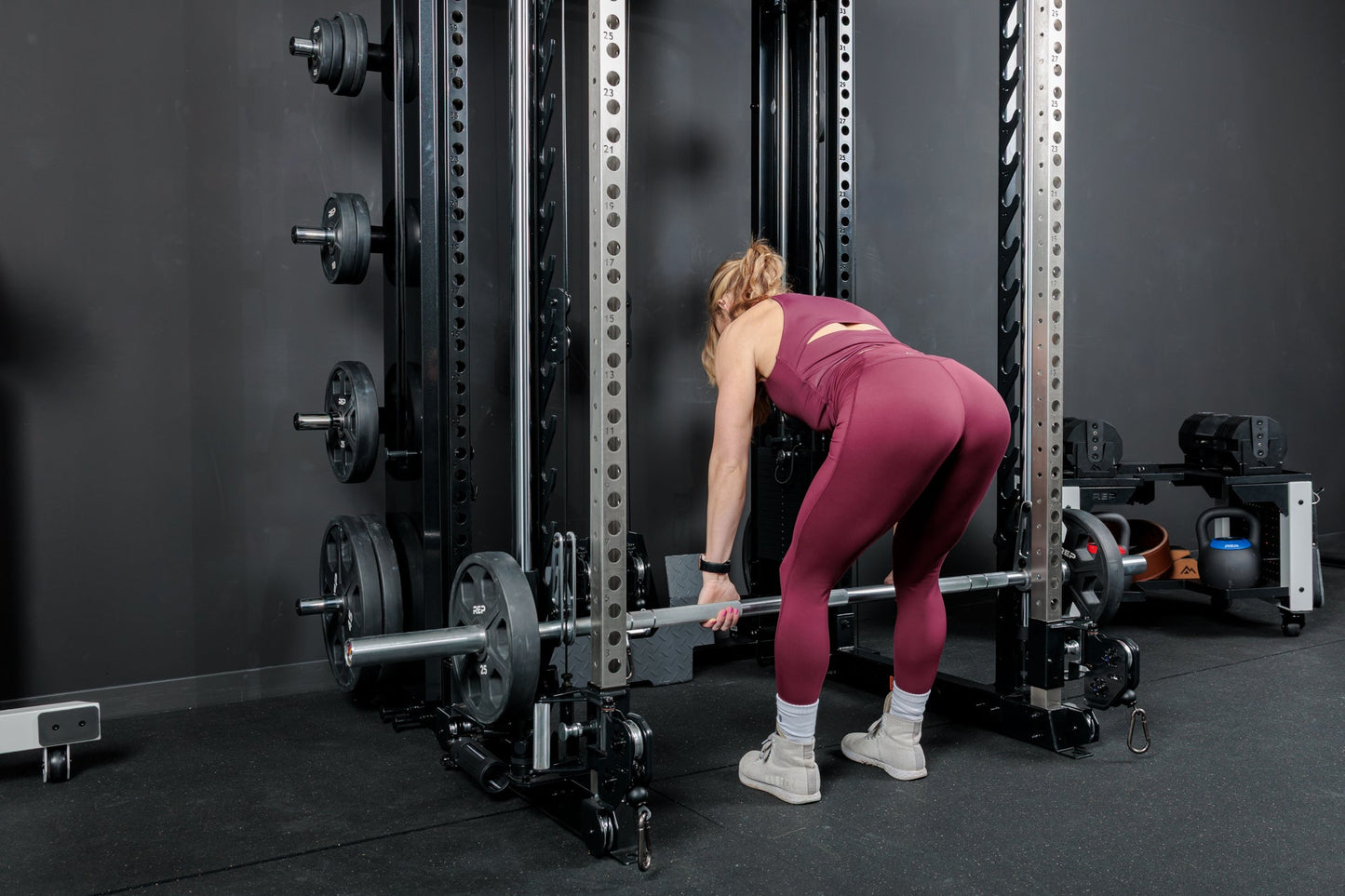

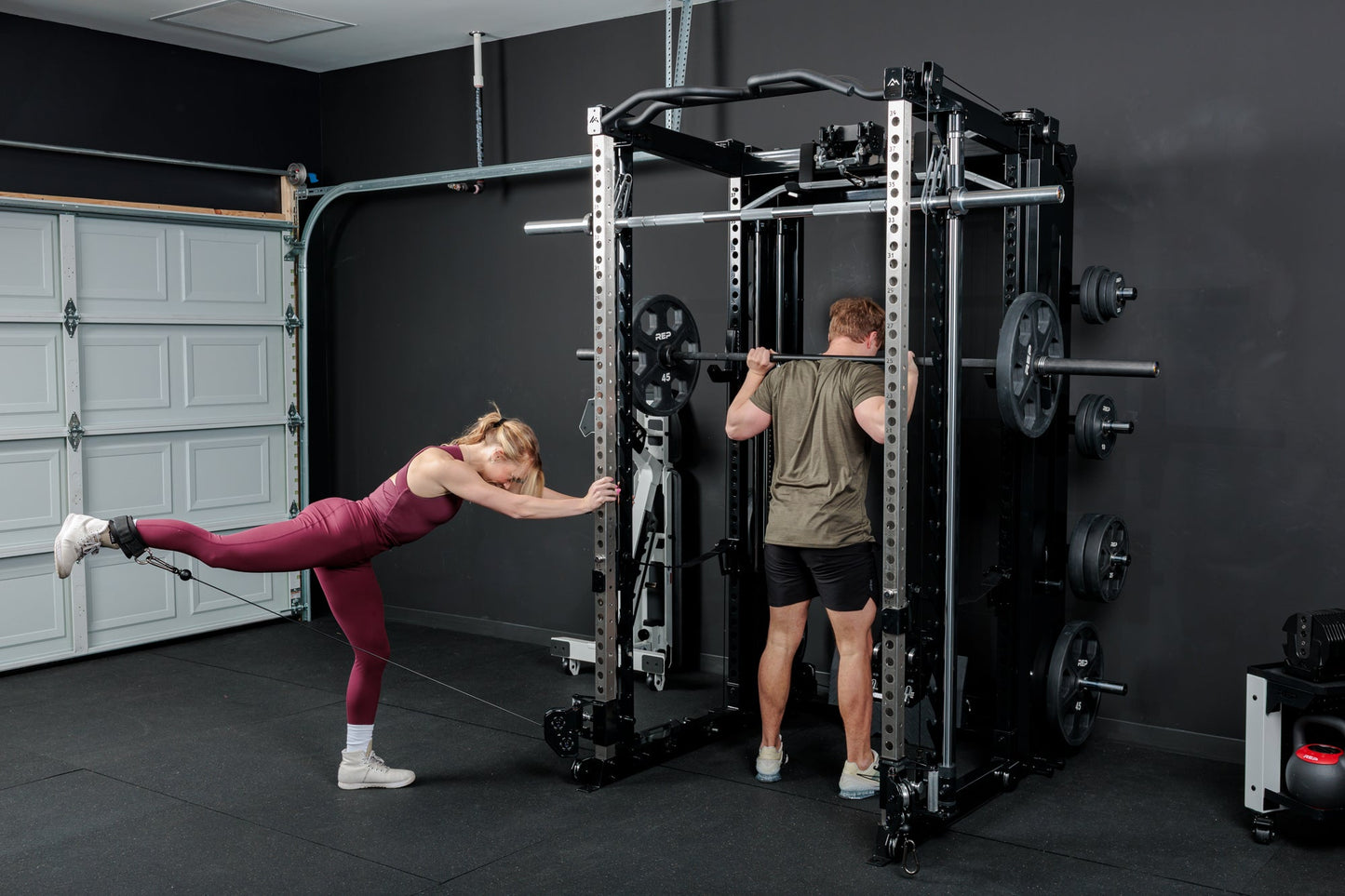

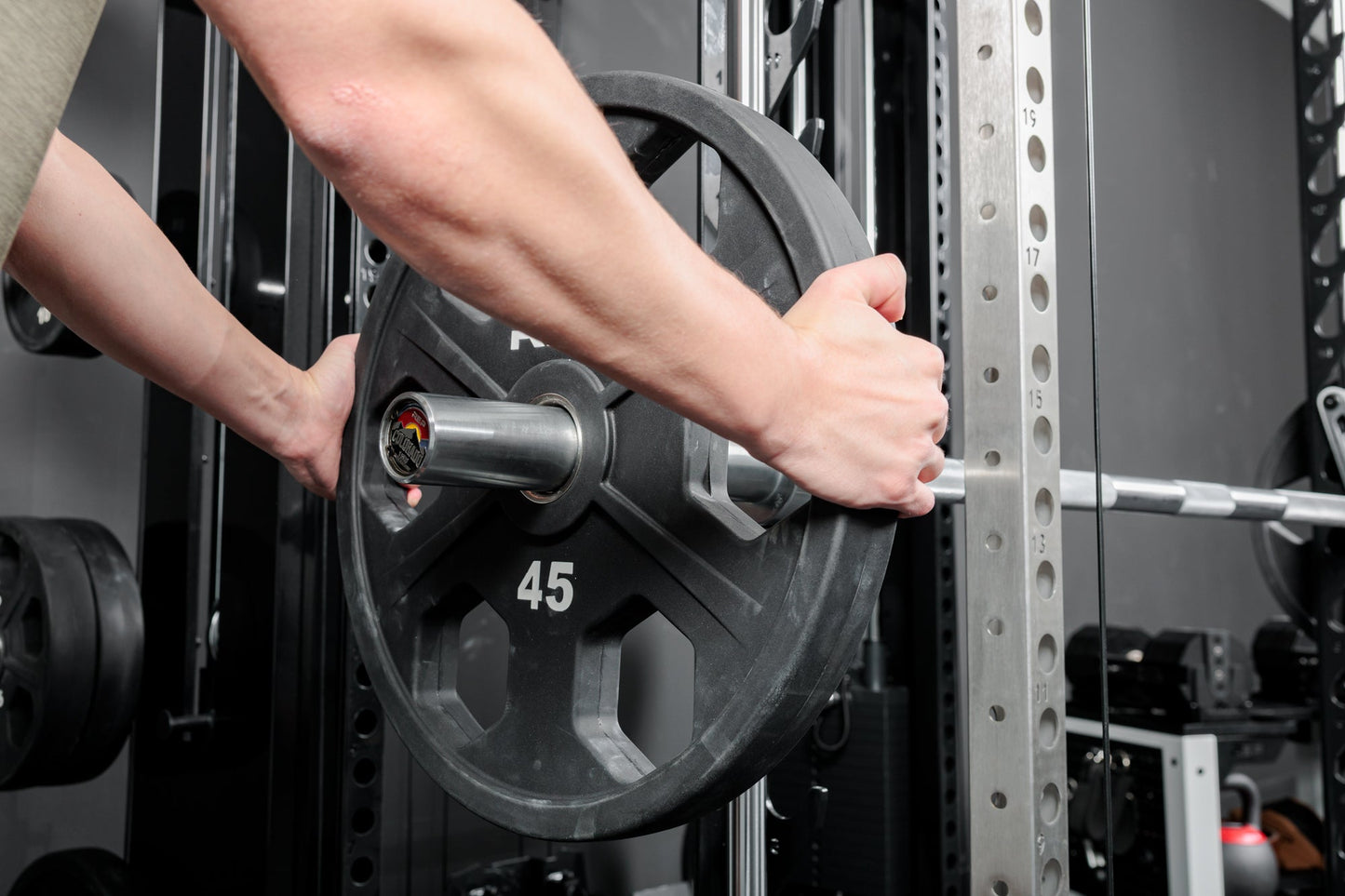

Yes, plates will clear the trolley. With the Rack + Smith Machine + Cable Attachment configuration, you can load plates onto the Smith Machine and still move without interference. The Altitude™ smith attachment and cable attachment paths are designed to coexist.
